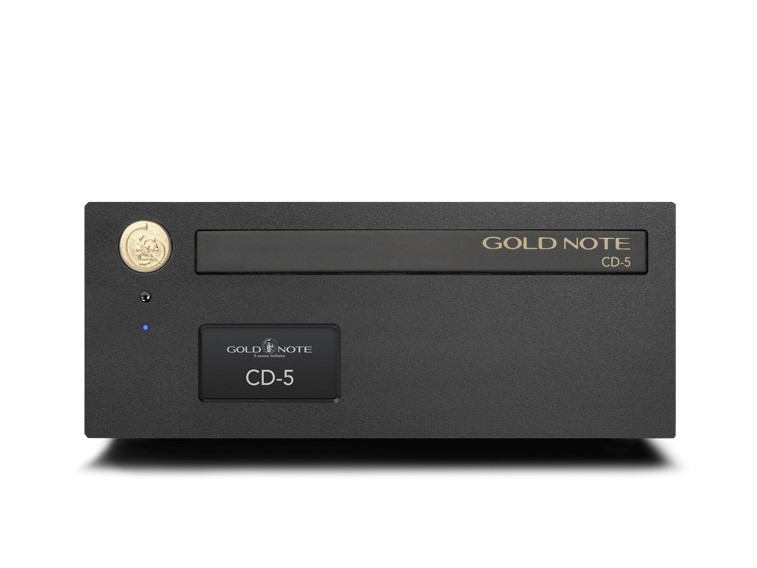

Το Gold Note CD-5 ειναι cd player για CD, CD-R, CD-RW. Εξοδος RCA Out και full balanced XLR Out.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The CD-5 is a CD player with a high-precision transport mechanism supporting gapless playback and an integrated high-resolution D/A converter. Its mechanical chassis and audio circuitry are designed to minimize noise and intermodulation through the use of selected audio-grade components and a fully analog signal path. Operation is handled via a touchscreen interface or the supplied remote control.

The unit provides both analog and digital outputs in a balanced configuration for flexible system integration. Compatibility with the optional PSU-10 EVO external power supply allows further improvement in power stability and dynamic performance.

Specifications

• Main features:
  • CD player with integrated D/A converter
  • CD transport: Tray loader by Stream Unlimited (SUOS-Hifi)
• D/A converter:
  • DAC chipset: AKM AK4493
• Audio performance:
  • Frequency response: 20 Hz – 20 kHz (±0.3 dB)
  • Total harmonic distortion (THD): ≤ 0.001%
  • Signal-to-noise ratio: 124 dB
  • Dynamic range: 123 dB
  • Speed fluctuation: 0.0001%
• Disc compatibility:
  • CD format: Red Book
  • Compatible discs: CD, CD-R, CD-RW
  • Gapless playback: Supported

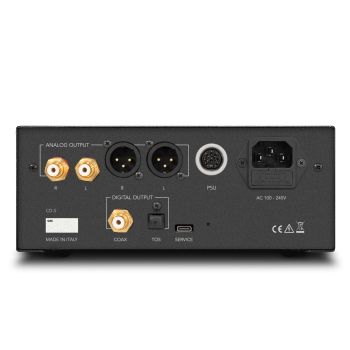

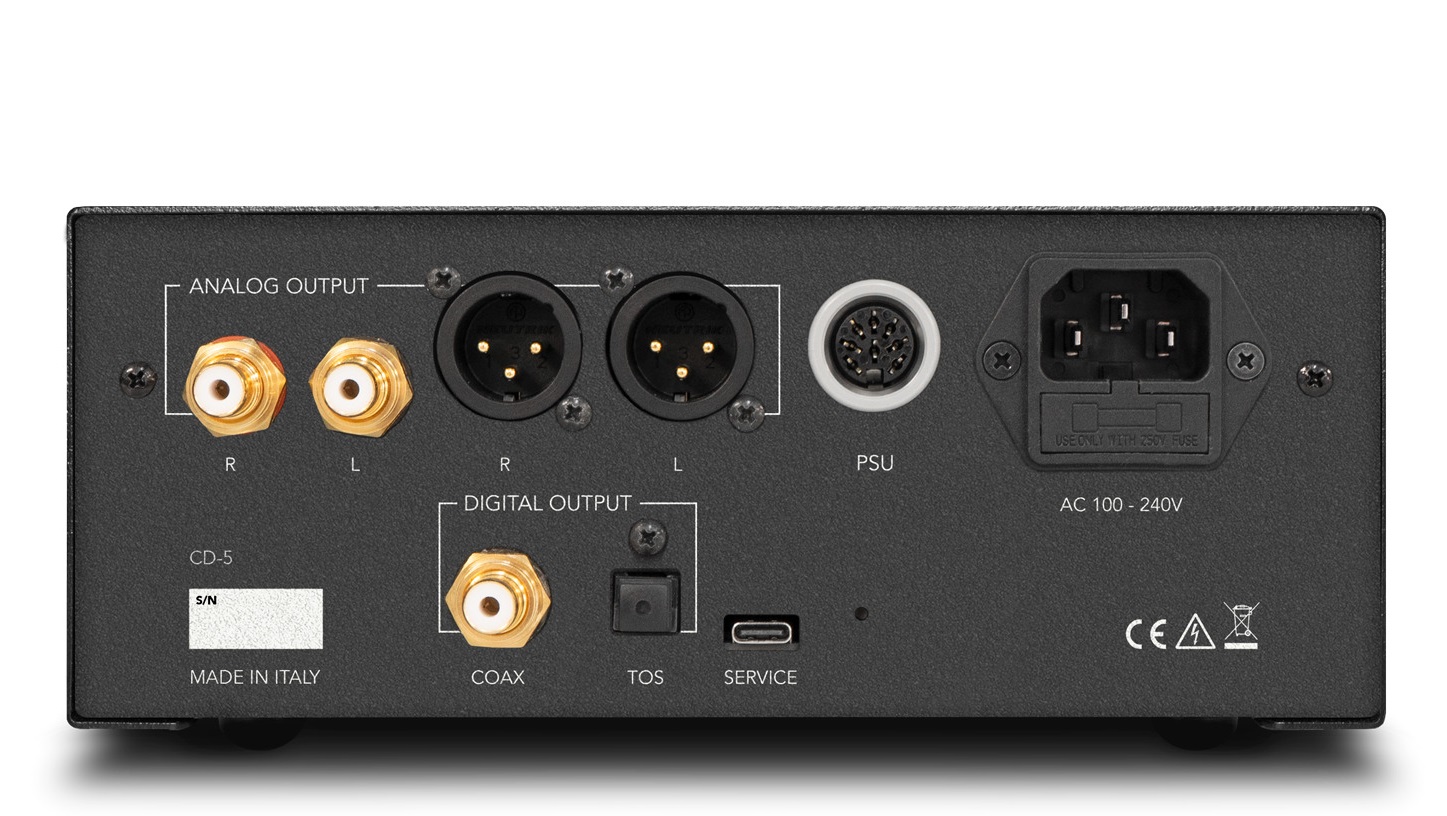

• Inputs and outputs:
  • Analogue outputs:
    • Unbalanced RCA ×1 (2 Vrms)
    • Balanced XLR ×1 (2 Vrms)
  • Digital outputs:
    • Coaxial S/PDIF ×1 (75 Ω)
    • Optical TOS-Link ×1
  • Output impedance: 100 Ω
• Remote control:
  • Multifunction remote control included
• Power:
  • Power consumption: 30 W
  • Power supply: 100–240 V, 50 / 60 Hz
  • Fuse (100 / 240 V): 2 AT
• Dimensions and weight:
  • Dimensions (W × H × D): 200 × 80 × 260 mm
  • Net weight: 3 kg
  • Boxed weight: 4 kg
