Το Monitor Audio Anthra W12 ειναι ενα ενεργο υπογουφερ για home cinema εφαρμογες, με woofer 12" και ενισχυτη class-D 900 wrms.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

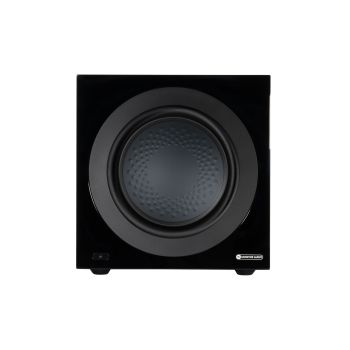

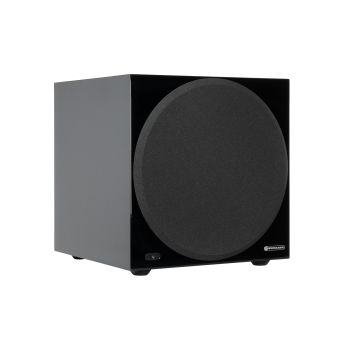

Engineered to deliver impressive bass in medium and large spaces, the Anthra W12 subwoofer features a formidable 1,000 Watt Class-D amplifier driving a 12” (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W12 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

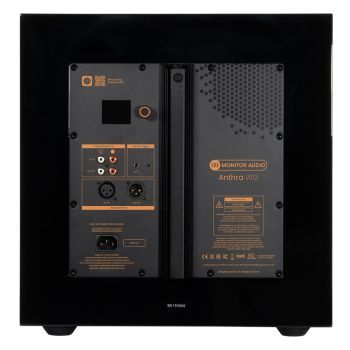

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

Key Features

• 1 x 12” (30cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
• 1 x 1000 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
• Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
• 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
• RCA inputs (left/right. The left Input is LFE)
• RCA outputs allows daisy chain of up to 4 Anthra subwoofers
• XLR inputs for professional installation connectivity option
• XLR outputs allows daisy chain of up to four Anthra subwoofers
• Available in Gloss Black and Satin White finishes
• MaestroUnite Setup for Monitor Audio Anthra Subwoofers allows a user complete bespoke setup. Available to download from the App Store and Google Play.

Specifications

• System Format    Active – Sealed Cabinet
• Drive Unit Complement    1x 12" (305 mm) High Linear-Excusion Triple Suspension Driver
• Amplifier Classification    High-Efficiency Class-D
• Lower Frequency Limit    -6dB at 16Hz
• Upper Frequency Limit    (LPF Off) -6dB at 400Hz
• Driver Excursion (pk-pk)    50 mm
• DSP    28 Bit 50 MIPS Configuratable through MaestroUnite
• Analogue Digital Conversion    Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
• Amplifier Output Power, 240Vac    Instantaneous: 1700 W* Continuous short-term: 900 W**
• Amplifier Output Power, 120Vac    Instantaneous: 1325 W Continuous short-term: 700 W
• LED UI Control    Brightness, On-Off
• Phase Control    0-360 Degrees measured at LPF Crossover
• Low Pass Filter    20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
• Custom EQ    Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
• Volume Level    Wide adjustable input gain to allow maximum output from a wide range of input signals
• Inputs    Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR
• Outputs    Stereo unbalanced outputs with unbuffered throughput from RCA Inputs Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input
• Mains Input Voltage    Universal Mains, 85-265VAC
• External Dimensions (without feet) (HxWxD)    374 x 374 x 374 mm
• Power Consumption    200 W
• Cabinet Construction    Braced 25 mm thick MDF with 36mm front baffle
• Grille    Cloth covered magnetically attached Grilles
• Weight    32.4 kg

* Maximum RMS output for an instantaneous signal ** Sinewave for 10 seconds
