Το Bowers & Wilkins 803 D5 ειναι ζευγος ηχείων 3 δρόμων, 4 μεγαφώνων.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

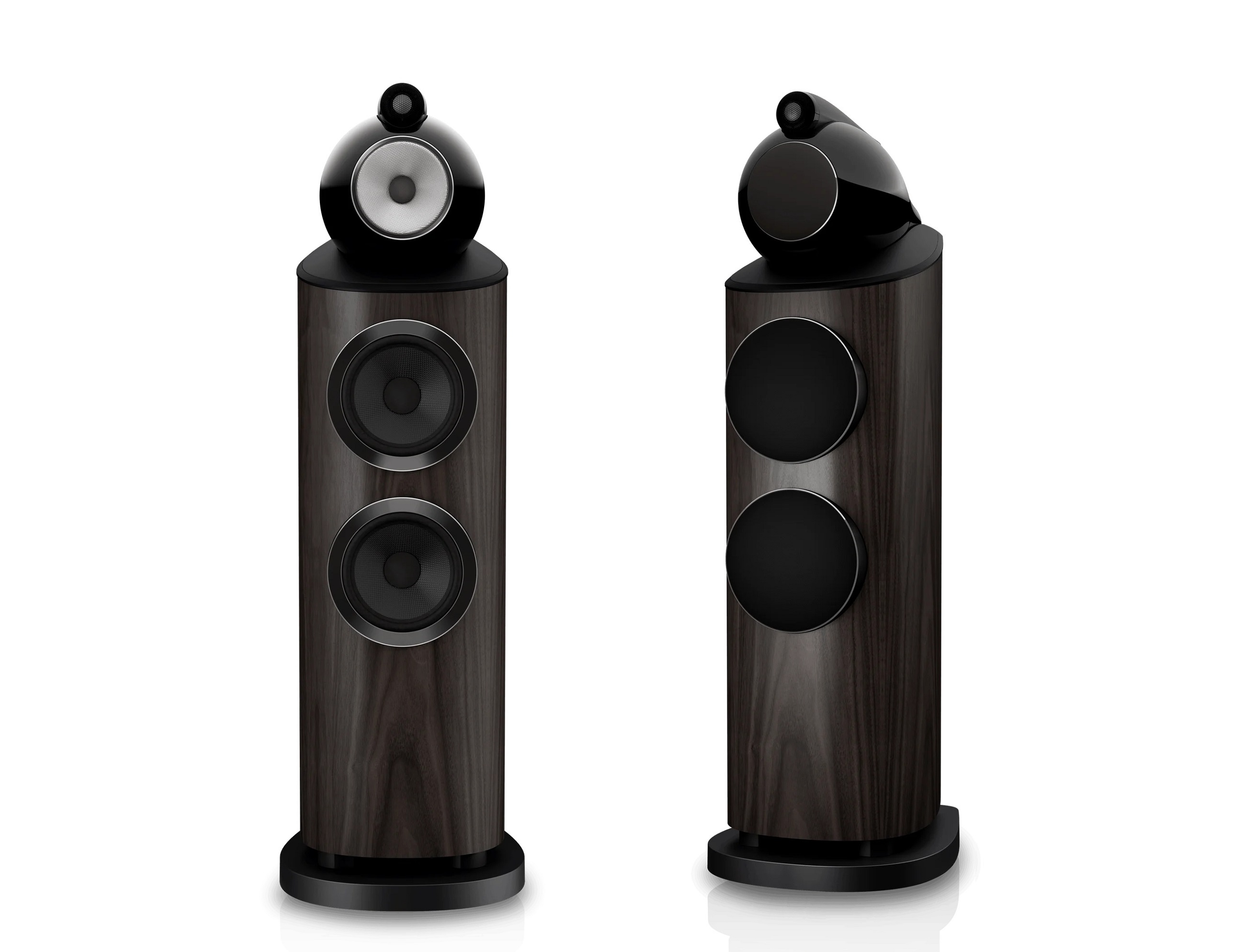

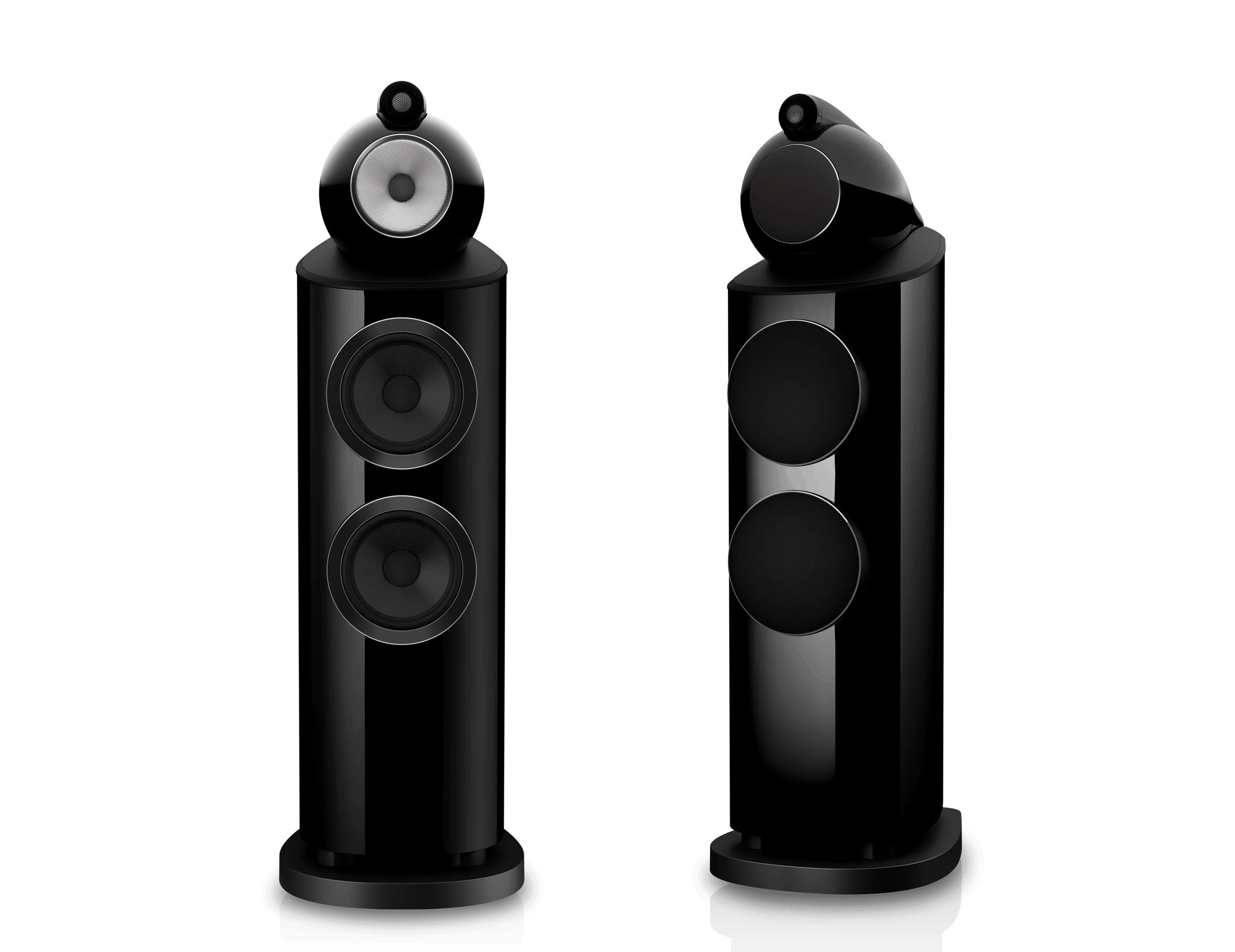

The 803 D5 is the most compact 800 Series Diamond model to feature the iconic Turbine Head configuration. Thanks to its smaller proportions, it delivers reference-quality Bowers & Wilkins audio performance across a wider range of living and listening spaces.

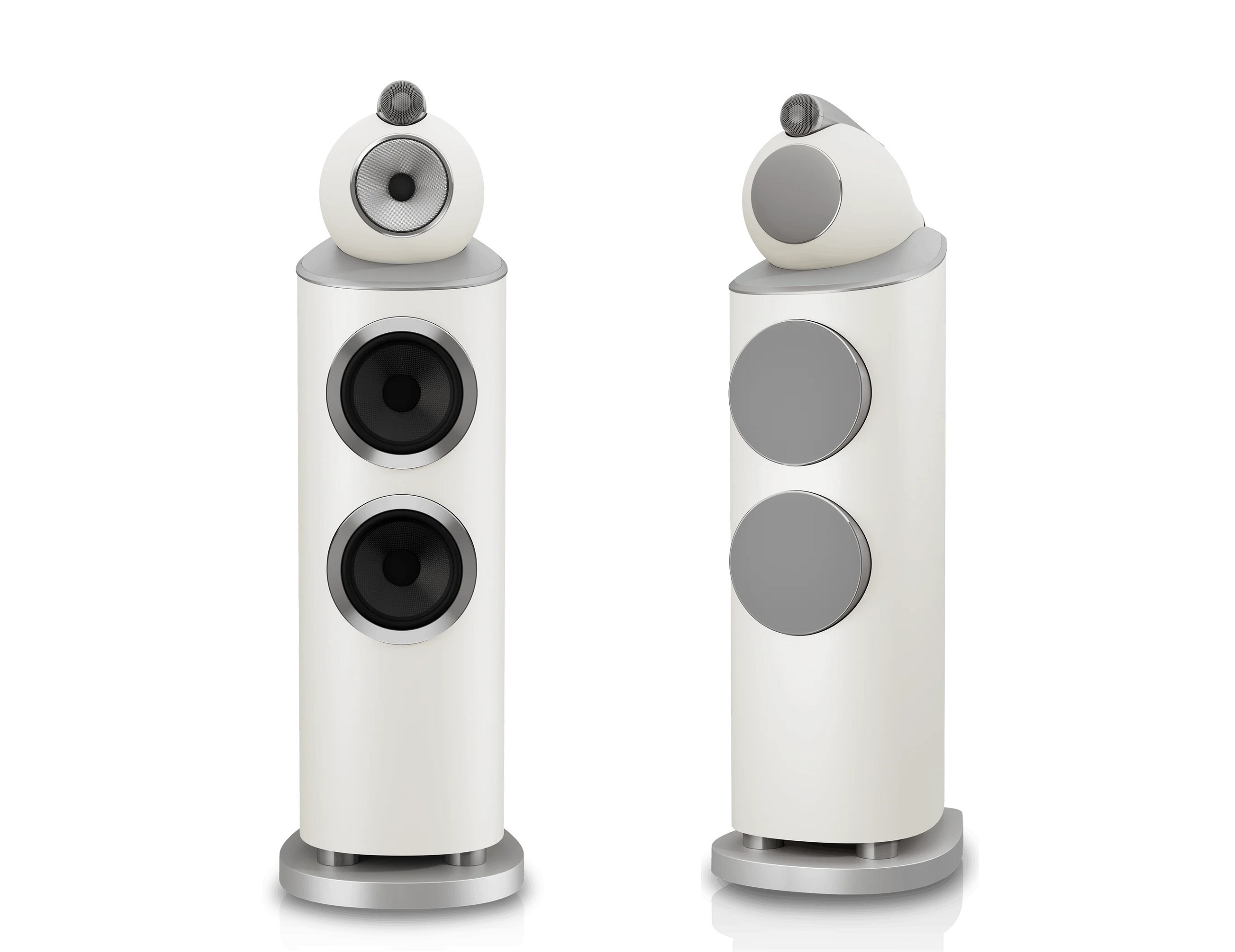

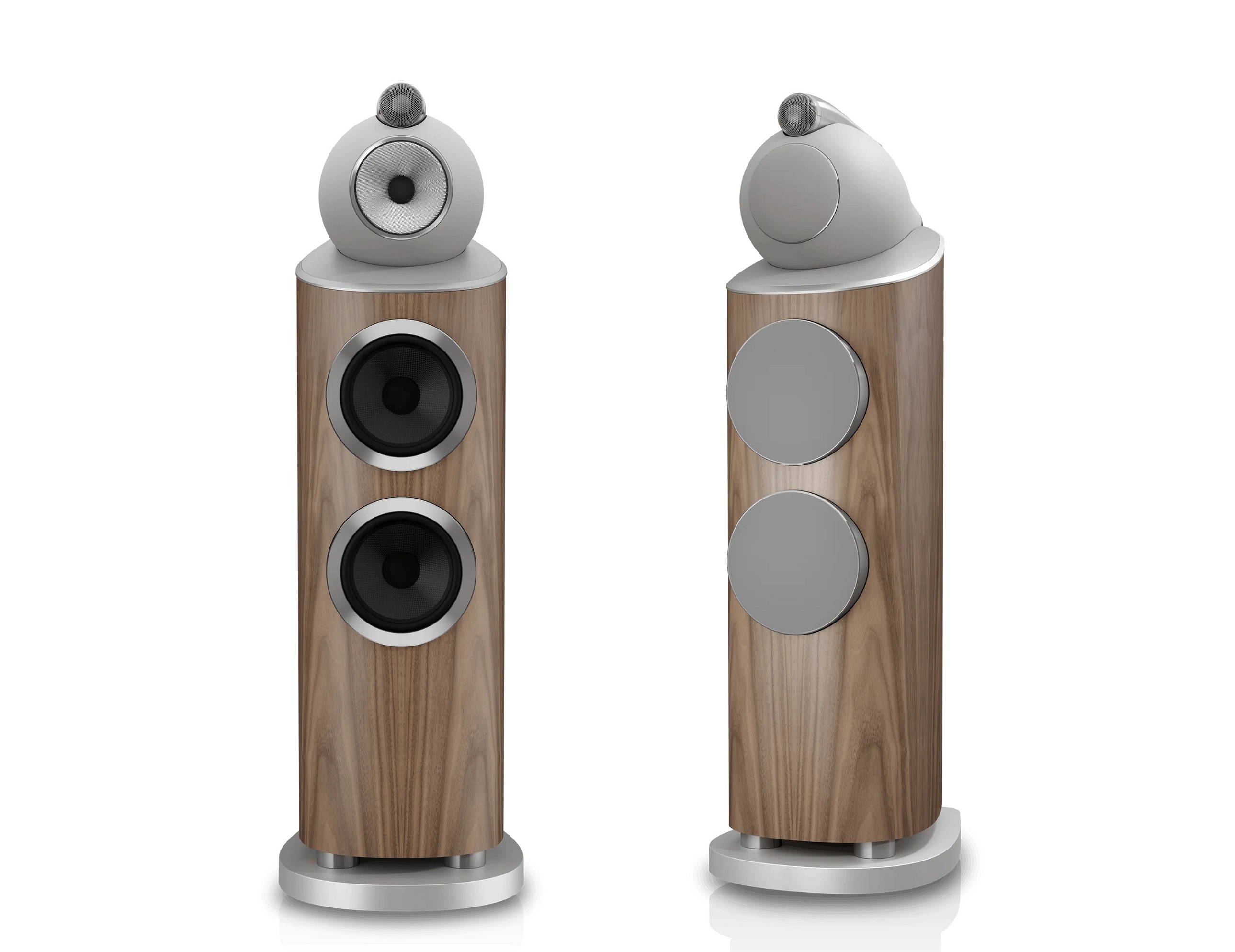

hanced Matrix™ with Space Frame Bracing and an Aluminium Top Plate with damping collar, ensuring the most precise and compelling soundpossible. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 803 D5 is uncompromising in both performance and design.

Technical features

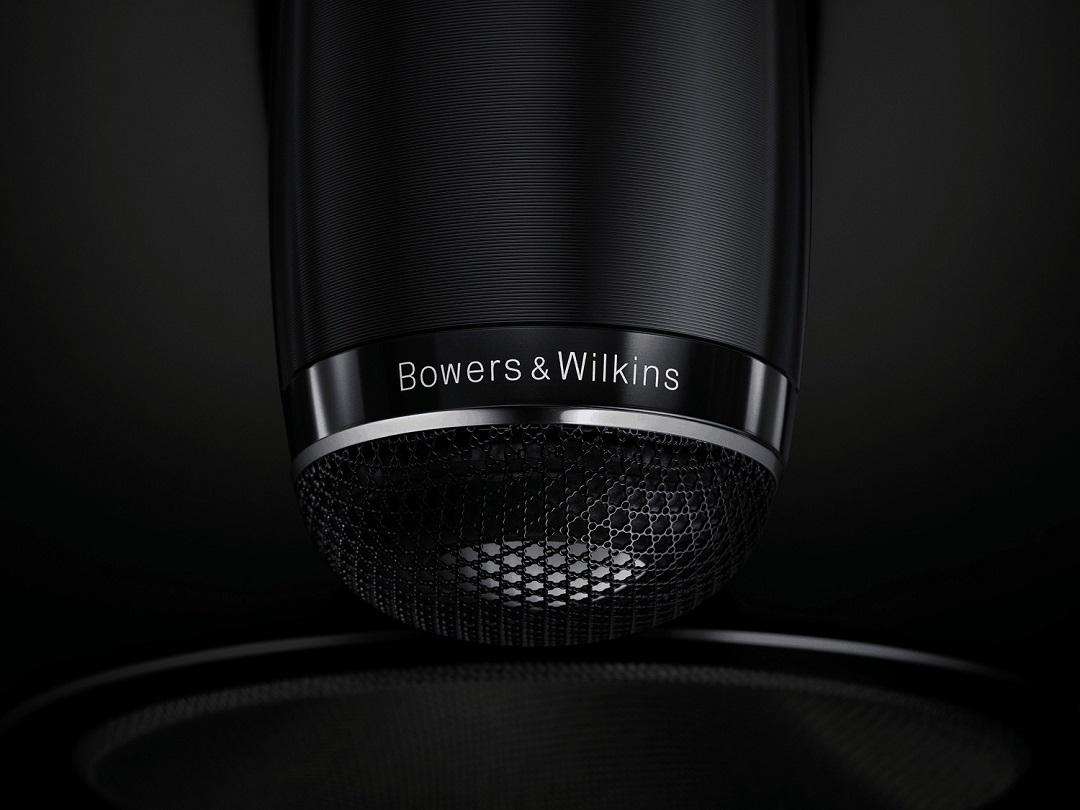

• Diamond dome tweeter
• Solid body Tweeter-on-Top
• Continuum™ cone FST midrange
• Anti-Resonance plug
• Biomimetic Suspension
• Turbine Head
• Matrix™
• Aerofoil™ base cones
• Flowport™

Specifications

• Description: 3-way vented-box system
• Drive Units:
  • 1 x 25mm, 1-inch, diamond dome tweeter
  • 1 x 130mm, 5-inch, Continuum cone FST midrange
  • 2 x 180mm, 7-inch, Aerofoil™ bass drivers
• Frequency Range: 16Hz – 35kHz, -6dB
• Frequency Response: 19Hz – 28kHz, ±3dB
• Sensitivity: 90dB
• Harmonic Distortion:
  • <1%, 80Hz – 20kHz, 2nd and 3rd harmonics, 90dB, 1m on axis
  • <0.3%, 100Hz – 8kHz, 2nd and 3rd harmonics, 90dB, 1m on axis
• Nominal Impedance: 8Ω, minimum 3.0Ω
• Recommended Amplifier Power: 50W – 1000W into 8Ω, unclipped programme
• Cabinet Finishes: Stealth Black, Warm White, Dark Walnut, Light Walnut
• Grille Finishes: Black, Stealth Black and Dark Walnut, Grey, Warm White and Light Walnut
• Dimensions:
  • Height: 1165mm, including tweeter and plinth
  • Width: 301mm cabinet only / 359mm including plinth
  • Depth: 473mm including grille and terminals / 499mm including plinth
• Weight: 63.7 kg
