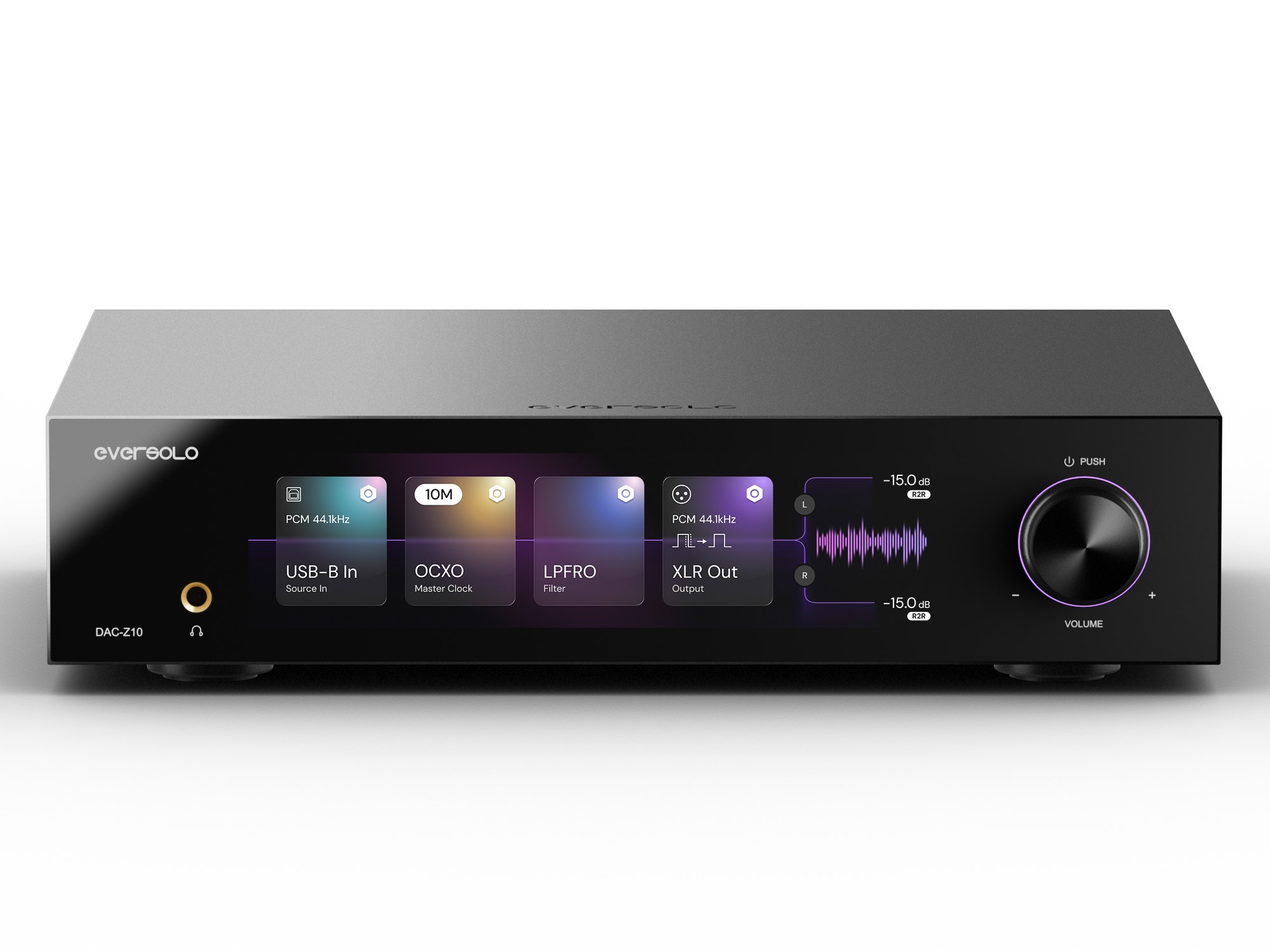

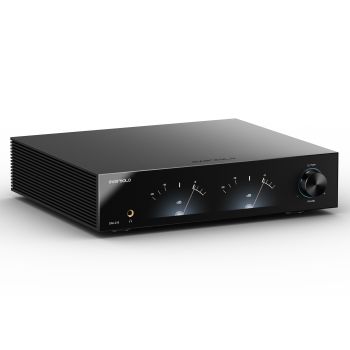

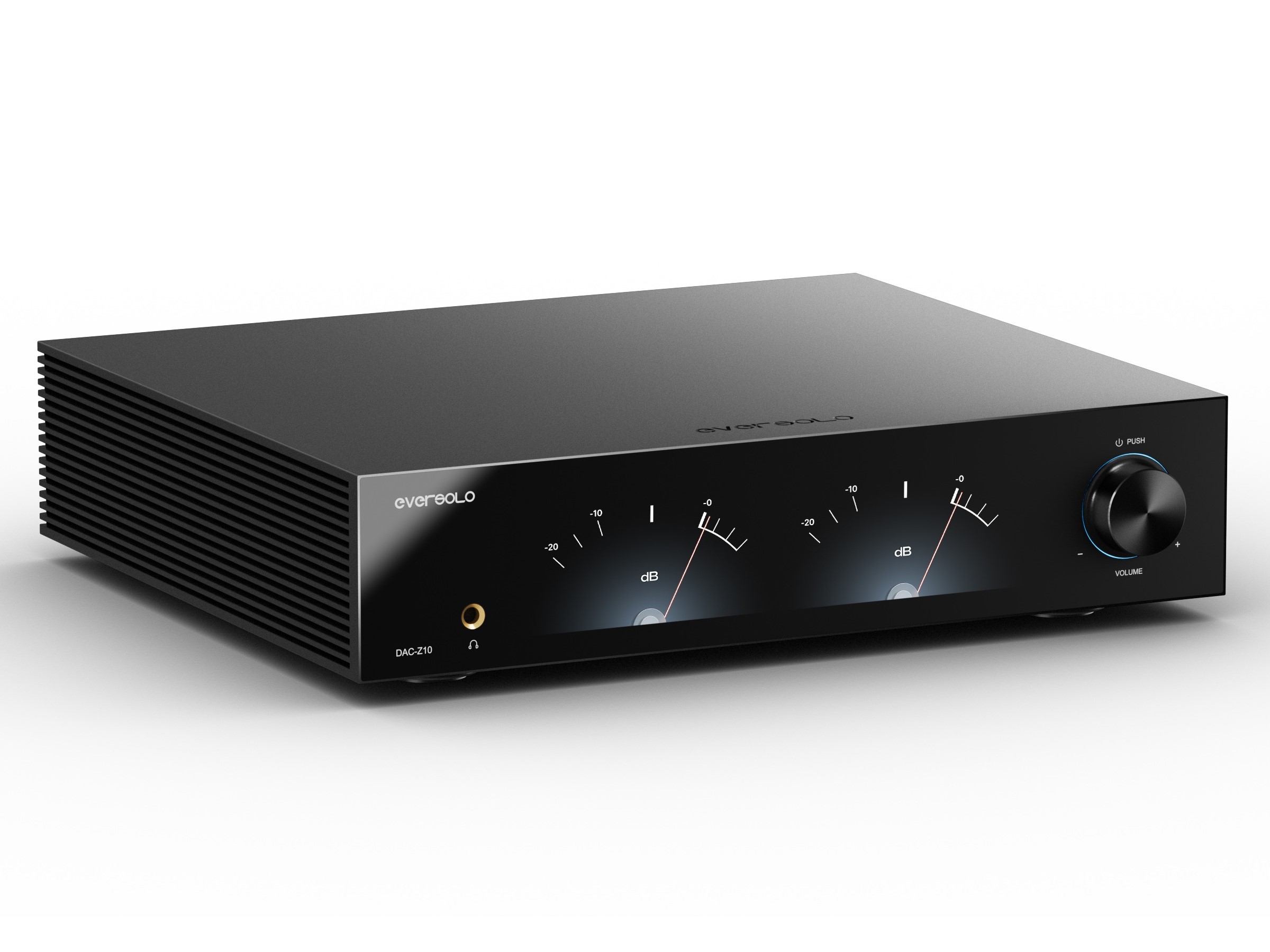

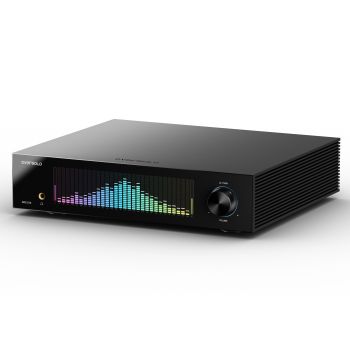

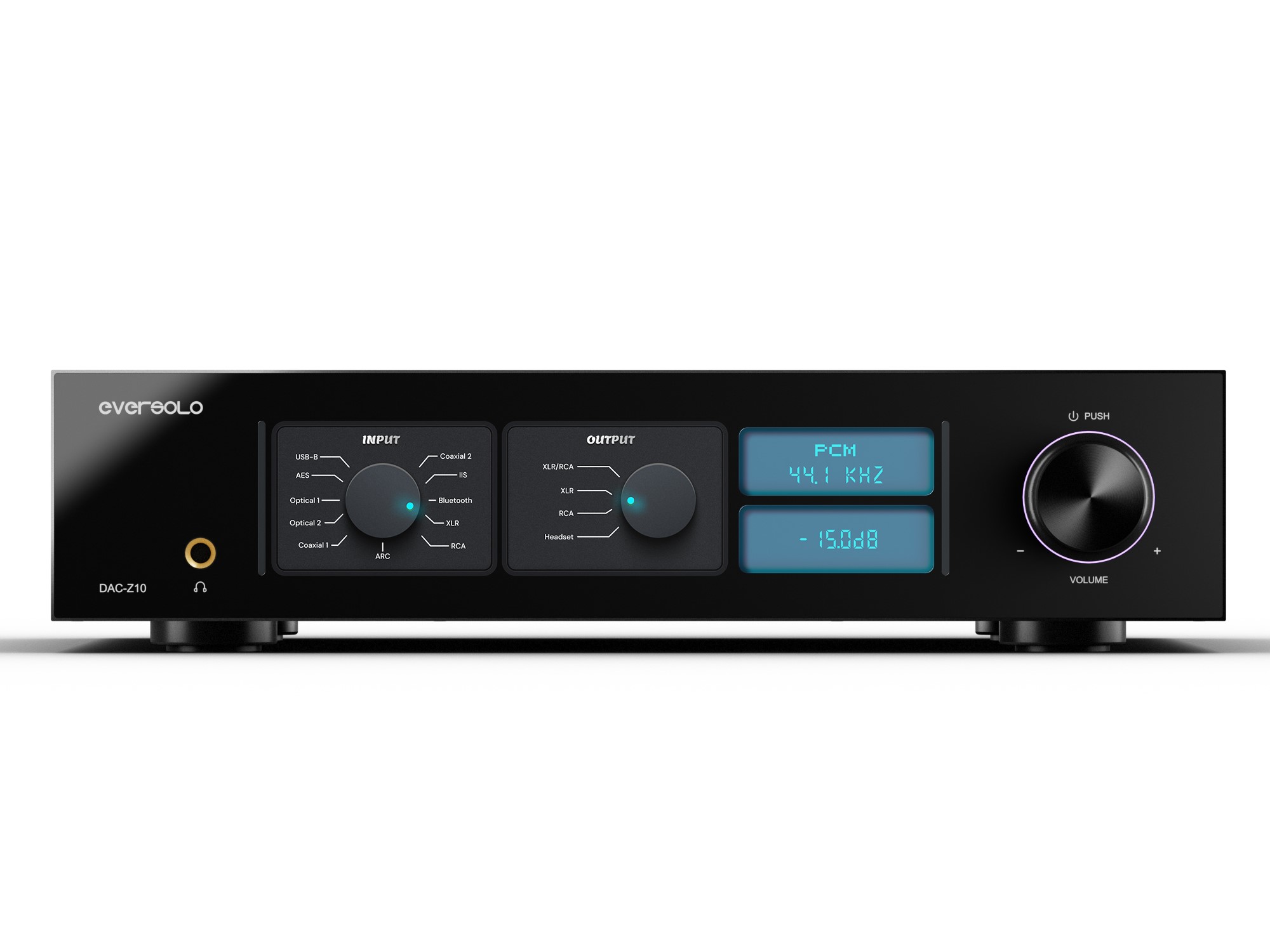

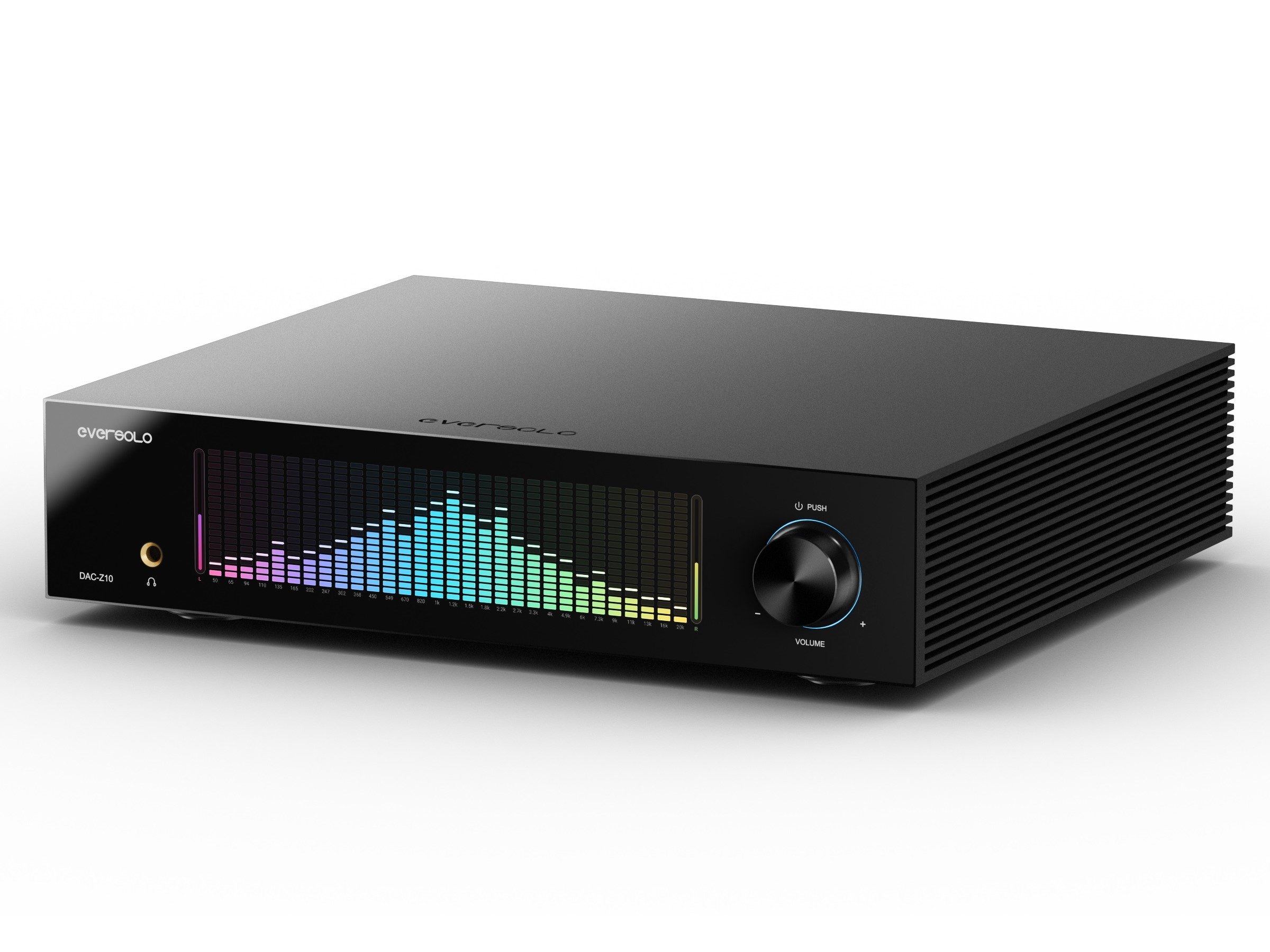

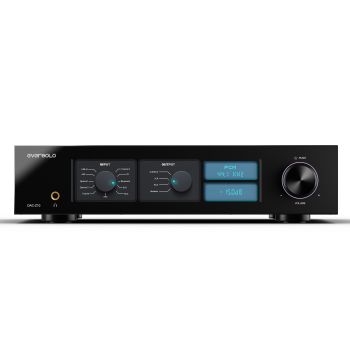

Το Eversolo DAC-Z10 είναι DAC, προενισχυτής, ενισχυτής ακουστικών, με πλήρη dual-mono «FIA» αρχιτεκτονική, υποστηρίζει PCM 32-bit/768kHz και Native DSD512, προσφέρει ευρύ φάσμα εισόδων (USB-B, HDMI I²S, Coaxial, Optical, AES/EBU, Bluetooth) και έξοδοι XLR, RCA, καθώς και έξοδο ακουστικών με αυτόματη ανίχνευση της αντίστασης των ακουστικών.

Εγγυηση αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

• Dual independent AK4191 + AK4499 DAC modules
• Precise R2R resistor array for volume control
• Three custom linear power–supply channels
• External clock support (10 MHz / 25 MHz)
• Built-in FPGA for optimized signal processing
• Multi-core USB audio processor
• Eversolo Precision Core™ accurate clock system
• I²S input with 8 switchable modes
• HDMI ARC input
• Dedicated 6.35 mm headphone amplifier module
• Built-in Qualcomm QCC5125 Bluetooth module

Specifications

• Model: Eversolo DAC-Z10
• Display: 8.8" IPS
• Chassis Material: Aluminium alloy
• Main Processor: DCP8568
• DAC:
  • Left Channel: AK4191 + AK4499
  • Right Channel: AK4191 + AK4499
• Audio Processor: Multi-core USB audio processor
• OPA Chip: OPA1612
• Power: Triple ultra-low noise linear power supplies
• Bluetooth Audio Input: Qualcomm QCC5125, Bluetooth 5.0; supports SBC / AAC protocols
• USB-B Audio Input: Compatible with Windows 10+, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768 kHz 32-bit
• IIS Input: 8 mode configurations, up to Stereo DSD512 / PCM 768 kHz 32-bit
• AES/EBU Input: Up to Stereo PCM 192 kHz / 24-bit / DSD64 DoP
• Optical Audio Inputs × 2: Up to Stereo PCM 192 kHz / 24-bit / DSD64 DoP
• Coaxial Audio Inputs × 2: Up to Stereo PCM 192 kHz / 24-bit / DSD64 DoP
• ARC Input: Up to Stereo PCM 192 kHz / 24-bit

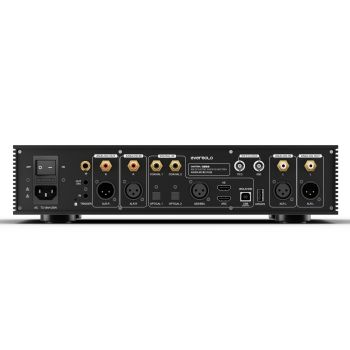

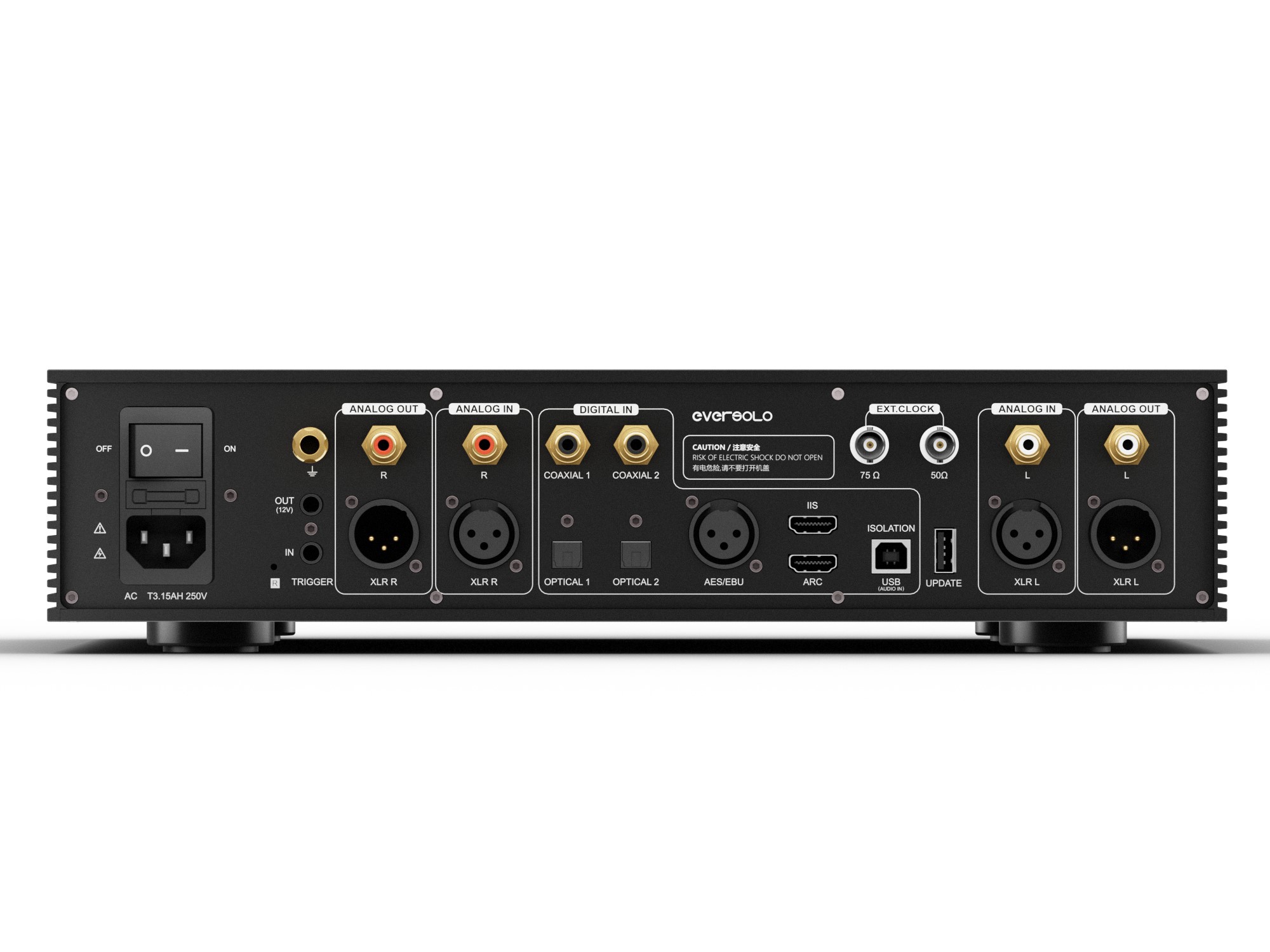

• Analog Audio Inputs: XLR (Balanced), RCA
• Analog Audio Outputs: Pre-out – XLR (Balanced), RCA; Headphone out – 6.35 mm single-ended
• External Clock Input: Supports 10 M / 25 M clock inputs (50 Ω or 75 Ω impedance)
• Recommended Headphone Impedance: 16–300 Ω (Low Gain 16–32 Ω / High Gain 32–300 Ω)
• XLR Output Audio Characteristics:
  • Output Level: 5 Vrms @ 0 dBFS
  • THD+N @ 1 kHz: 0.00008 % (–122 dB)
  • Noise: < 1.2 µVrms
  • SNR (A-wt): 130 dB
  • Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
  • Crosstalk: –130 dB
  • DNR (A-wt): 130 dB
• RCA Output Audio Characteristics:
  • Output Level: 2.5 Vrms @ 0 dBFS
  • THD+N @ 1 kHz: 0.000097 % (–120 dB)
  • Noise: < 1.5 µVrms
  • SNR (A-wt): 128 dB
  • Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
  • Crosstalk: –123 dB
  • DNR (A-wt): 128 dB
• Headphone Output Audio Characteristics (Low Gain):
  • Output Level: 4 Vrms @ 0 dBFS
  • THD+N @ 1 kHz: 0.0003 % (–110 dB)
  • Noise: < 2.5 µVrms
  • SNR (A-wt): 124 dB
  • Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
  • DNR (A-wt): 124 dB
• Headphone Output Audio Characteristics (Mid Gain):
  • Output Level: 5.6 Vrms @ 0 dBFS
  • THD+N @ 1 kHz: 0.00018 % (–115 dB)
  • Noise: < 2.5 µVrms
  • SNR (A-wt): 126 dB
  • Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
  • DNR (A-wt): 126 dB
• Headphone Output Audio Characteristics (High Gain):
  • Output Level: 7 Vrms @ 0 dBFS
  • THD+N @ 1 kHz: 0.00013 % (–118 dB)
  • Noise: < 2.5 µVrms
  • SNR (A-wt): 127 dB
  • Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
  • DNR (A-wt): 127 dB
• Power Supply: AC 100 – 240 V 50/60 Hz
• USB Port: USB 2.0 × 1 (for firmware upgrade only)
• Control Methods: Touchscreen control, remote control, mobile App control
• Rated Power Consumption: 32 W
• Dimensions (L × W × H): 365 × 310 × 88 mm
• Packing List: Remote control, power cable, USB data cable, USB drive (for FW upgrade), trigger cable, polishing cloth, user manual
