To AudioQuest Niagara 7000 ειναι ενα πολυμπριζο/φιλτρο/προστατευτικο/AC διαχειριστης.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

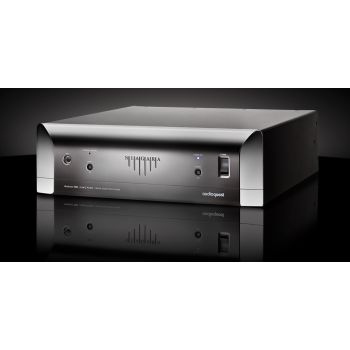

Niagara 7000 takes a holistic, science-based approach to AC power technology and represents a comprehensive solution to the ever-increasing noise that plagues our power lines.

In the Niagara 7000, you’ll find optimized radio-frequency lead directionality, run-in capacitor forming technologies developed by Jet Propulsion Laboratories and NASA, and AC inlet and outlet contacts with heavy silver plating over extreme-purity copper assuring the tightest grip possible.

The Niagara 7000 uses our patented AC Ground-Noise-Dissipation, the world’s first Dielectric-Biased AC Isolation Transformers, and the widest bandwidth-linearized noise-dissipation circuit in the industry. Our unique passive/active Transient Power Correction Circuit features an instantaneous current reservoir of over 90 amps peak, specifically designed for today’s current-starved power amplifiers. Most AC power products featuring “high-current outlets” merely minimize current compression; the Niagara 7000 corrects it.

Features

• Niagara Transient Power Correction: Transient Power Correction: Provides over 90 amps peak instantaneous current reservoir with reduced line impedance for current-starved power amplifiers, whether they incorporate linear or switching power supplies.
• Niagara 7000 Transformer: Dielectric-Biased AC Isolation Transformers: AQ’s patented technology greatly reduces non-linear distortions that have previously plagued even the finest magnetic-based systems, all the while increasing the bandwidth and efficiency of the transformers’ Noise-Dissipation.
• Level X Ultra Linear Noise-Dissipation Technology: More than 23 octaves differential-mode filtering (3kHz–1GHz in excess of 24dB reduction) and 20 octaves common-mode filtering (60Hz–100MHz in excess of 30dB reduction) with linear response, optimized for varying line and load impedance.
• Non-Sacrificial Surge Protection: Withstands multiple AC surges and spikes up to 6000V/3000A without sustaining damage–sonically non-invasive.

Specifications

• Outlets
  • Total: 12
  • Source: 8
  • High-Current: 4
• Noise-Dissipation
  • Linear Noise-Dissipation technology
  • Patented Ground-Noise-Dissipation system
  • 6 outlet banks
• DBS Symmetrical Power Isolation Transformer: Yes
• Patented Dielectric-Biased Symmetrical Power Isolation Transformers
  • 2 transformers for source component outlet banks
• Transient Power Correction
  • 90 A peak
  • Provides current reservoir for power amplifiers (up to 25 ms)
• Maximum RMS Input Current: 20 A (RMS)
• Maximum RMS Current per Source Output Bank: 5 A (RMS)
• Level-X Ultra-Linear Noise-Dissipation Technology
  • More than 23 octaves differential-mode filtering (3 kHz – 1 GHz, >24 dB reduction)
  • 20 octaves common-mode filtering (60 Hz – 100 MHz, >30 dB reduction)
• Ground Noise-Dissipation System
  • Direction-controlled ground noise dissipation
  • Applied to all outlets
• Surge Protection
  • Non-sacrificial surge protection
  • Withstands surges up to 6000 V / 3000 A
• Dimensions (W × H × D): 444.5 × 149 × 436.9 mm
• Weight: 41.7 kg
