Η Sumiko Songbird Low ειναι κεφαλη κινητου πηνιου, υψηλης εξοδου (high output), 0.5mV.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

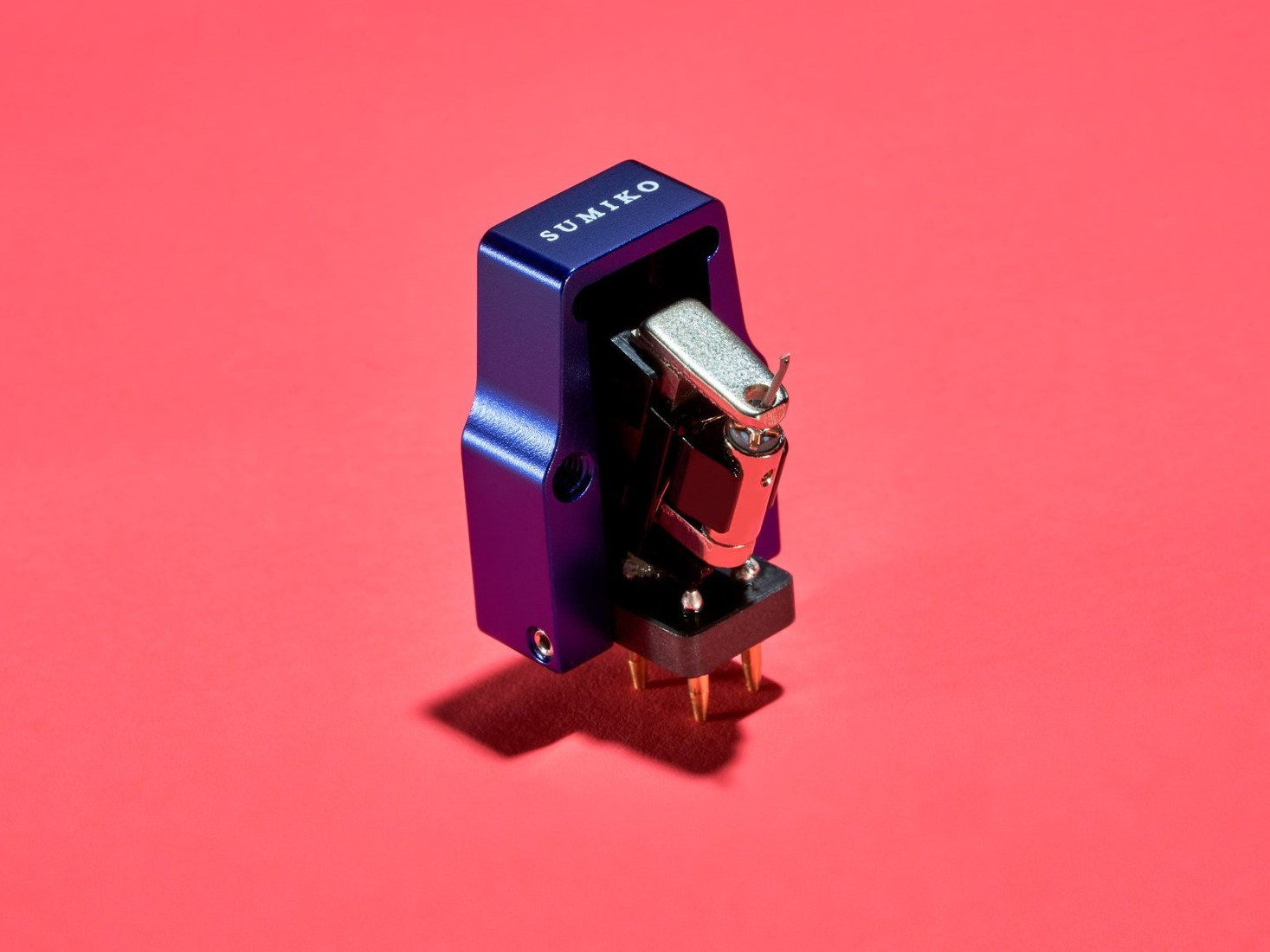

Our Reference Series open-architecture cartridges minimize the potential for coloration and distortion due to energy buildup that is sometimes propagated by the conventional cartridge body. Internal resonance is damped within the generator while remaining resonance travels up through the bonded mounting plate & headblock, then down the tonearm where it is dissipated harmlessly. The PEEK generator mounting plate provides the utmost stability and energy transfer while the stiff alloy headblock is the conduit through which that energy exits the cartridge. The generator itself minimizes distortion and losses through the implementation of pure metals and intelligent orientation of the same. The performance of this sophisticated generator is bolstered by our multi-faceted approach to resonance control, precipitating to clean, musical, and highly listenable sonics.

Specifications

• Weight: 7.4 g
• Stylus: Elliptical, 0.3 x 0.7mil
• Cantilever: 0.5mm reinforced aluminium pipe
• Coils: High-purity copper
• Internal Impedance: 28Ω, 1kHz
• Load Impedance: >100Ω, determine by ear
• Frequency Response: 12Hz – 30kHz
• Output: 0.5mV, 3.54cm / sec, 1kHz
• Channel Separation: 30dB, 1kHz
• Channel Balance: <1dB, 1kHz
• Compliance: 12 × 10^-6 cm / dyn, 100Hz
• Capacitance: 100pF – 200pF
• Vertical Tracking Angle: 20°
• Tracking Force Range: 1.8g – 2.2g
• Recommended Tracking Force: 2.0g
• Replacement Stylus Unit: Re-tip exchange, see dealer
