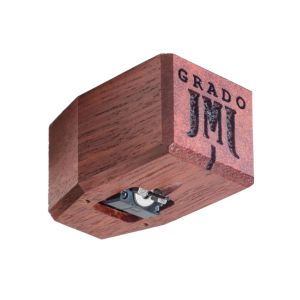

Η Grado Timbre Master-3 ειναι κεφαλη κινητου σιδηρου MI (Moving Iron), διπλου μαγνητη, με ελλειπτικη βελονα. Εξοδος 1mV ή 4mV.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Master3 and Reference3 models use a five piece OTL cantilever technology achieving an additional 5% tip mass reduction over the Platinum3 and Sonata3 models. The coils are wound with ultra-high purity long crystal (UHPLC) oxygen free copper wire. The Master3 model is mounted with Grado's specially designed nude elliptical diamond, and the Reference3 model uses Grado's true ellipsoid design diamond. These cartridges are individually calibrated.

Specifications

• Body: Australian Jarrah Wood
• Cantileaver: Machined Boron / Diamond Tip
• Output: High 4.0mV at 5 CMV (45), Low 1.0mV at 5 CMV (45)
• Inductance: High Output 55mH, Low Output 6mH
• Resistance: High Output 660 ohms
• Low Output 70 ohms
• Input Load: 10k-47k ohms
• Cartridge Weight: 10 grams
• Tracking Force: 1.6-1.9 grams
• Compliance 20μm/mN
• Channel Separation: Average 30db - 10-30k Hz
• Controlled Frequency Response: 10-60 KHz
• Non-Sensative to Capacitive Load
• Builds: High Output, Low Output, Mono
