Το Zidoo NEO S είναι 4K UHD media/network player/streamer και DAC με 5" OLED HD οθόνη αφής και media chipset Realtek RTD1619DR (ARM Cortex-A55 hexacore) σε συνδυασμό με GPU ARM Mali-G51 MP3. Διαθέτει εσωτερικό SSD 256 GB (M.2 SATA 3.0, επεκτάσιμο έως 1 TB), 2x ESS9068 DAC για ήχο μέχρι DSD512 και PCM 768 kHz/32-bit.Είσοδοι: 1x USB DAC input, 1x Coaxial, 1x Optical, 1x AES/EBU, 1x Ethernet, Wi-Fi (dual band 2.4GHz & 5GHz) και Bluetooth audio. Έξοδοι: 1x HDMI, 1x XLR balanced line out, 1x RCA line out, 1x Coaxial, 1x Optical, 1x AES/EBU, 1x USB Audio, 1x ακουστικών 4.4mm balanced και 1x ακουστικών 6.35mm single-ended.

Εγγύηση Αντιπροσωπείας. Δυνατότητα δόσεων.

Key Points

Integrated 5-inch OLED touch display
The Zidoo NEO S features a front-facing 5-inch OLED HD touch screen for direct navigation of media, status display, settings and playback controls without the need for an external display.

High-performance dual DAC and audio processing
The player integrates dual ESS9068 DAC chips with separate digital and analogue power supplies, supporting PCM up to 768 kHz/32-bit, DSD512 and MQA hardware decoding. This architecture improves SNR, dynamic range and reduces interference between digital and analogue circuits.

Extensive digital and analogue connectivity
NEO S offers multiple digital audio inputs and outputs including USB DAC input, Optical, Coaxial and AES/EBU, as well as balanced XLR and unbalanced RCA line outputs. It also includes headphone amplifier outputs (balanced 4.4 mm and single-ended 6.35 mm) for direct headphone listening.

4K video decoding and HDR support
The player supports 4K@60 Hz video decoding with HDR formats including Dolby Vision, HDR10+ and HDR10, and 12-bit color depth with BT.2020 wide color gamut over HDMI 2.0a output. Audio passthrough and bitstream capabilities are also supported for integrated AV use.

Network, USB and Bluetooth interfaces
Connectivity includes dual-band Wi-Fi (2.4 G/5 G), Gigabit Ethernet LAN, Bluetooth audio input with support for SBC, AAC, aptX, aptX LL, aptX HD and LDAC, USB audio input compatible with asynchronous processing, and additional control via app integration.

Specifications

• General
  • Model: Zidoo NEO S
  • Product type: 4K UHD media player / DAC with touchscreen
  • Display: 5-inch OLED HD touch screen
  • Chassis: Aviation aluminum alloy
  • Operating system: Android-based custom media UI
• Processor & Graphics
  • CPU: Realtek RTD1619DR ARM Cortex-A55 hexacore
  • GPU: ARM Mali-G51 MP3
• Storage & Memory
  • Internal SSD: 256 GB M.2 SATA 3.0
  • SSD expansion: up to 1 TB
• Video
  • HDMI output: HDMI 2.0a
  • Video decoding: 4K@60 Hz HEVC/H.265 with HDR10, HDR10+, Dolby Vision
  • Color: 12-bit, BT.2020, YCbCr 4:4:4
• Audio
  • DAC: Dual ESS9068
  • Audio decoding: PCM up to 768 kHz/32-bit, DSD512, MQA
  • Audio passthrough: supported for multichannel formats
  • Headphone outputs:
    • Balanced 4.4 mm
    • Unbalanced 6.35 mm
  • Line outputs:
    • Balanced XLR
    • Unbalanced RCA

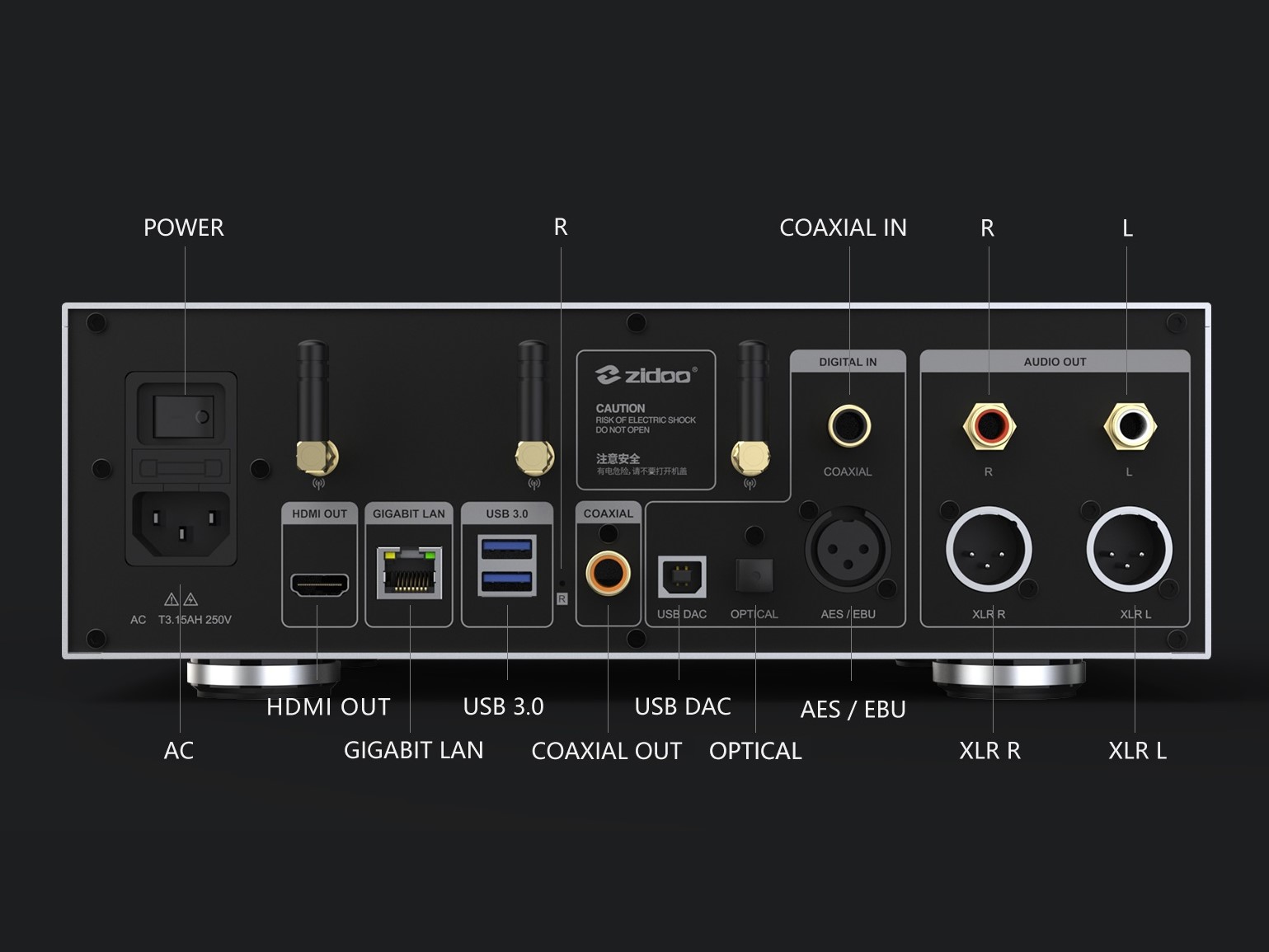

• Connectivity
  • Ethernet: RJ-45 (10/100/1000 Mbps)
  • Wi-Fi: Dual-band 2.4G/5G (802.11 a/b/g/n/ac, 2T2R MIMO)
  • Bluetooth: Audio input with support for SBC, AAC, aptX, aptX LL, aptX HD, LDAC
  • USB DAC input: supported (asynchronous digital input)
  • Digital audio inputs: Optical S/PDIF, Coaxial S/PDIF, AES/EBU
• Control & Interface
  • Touchscreen interface (5″ OLED)
  • Remote control (Bluetooth/IR)
  • Network app control
• Physical
  • Dimensions: approx. 213 × 292 × 101 mm
  • Weight: not specified
