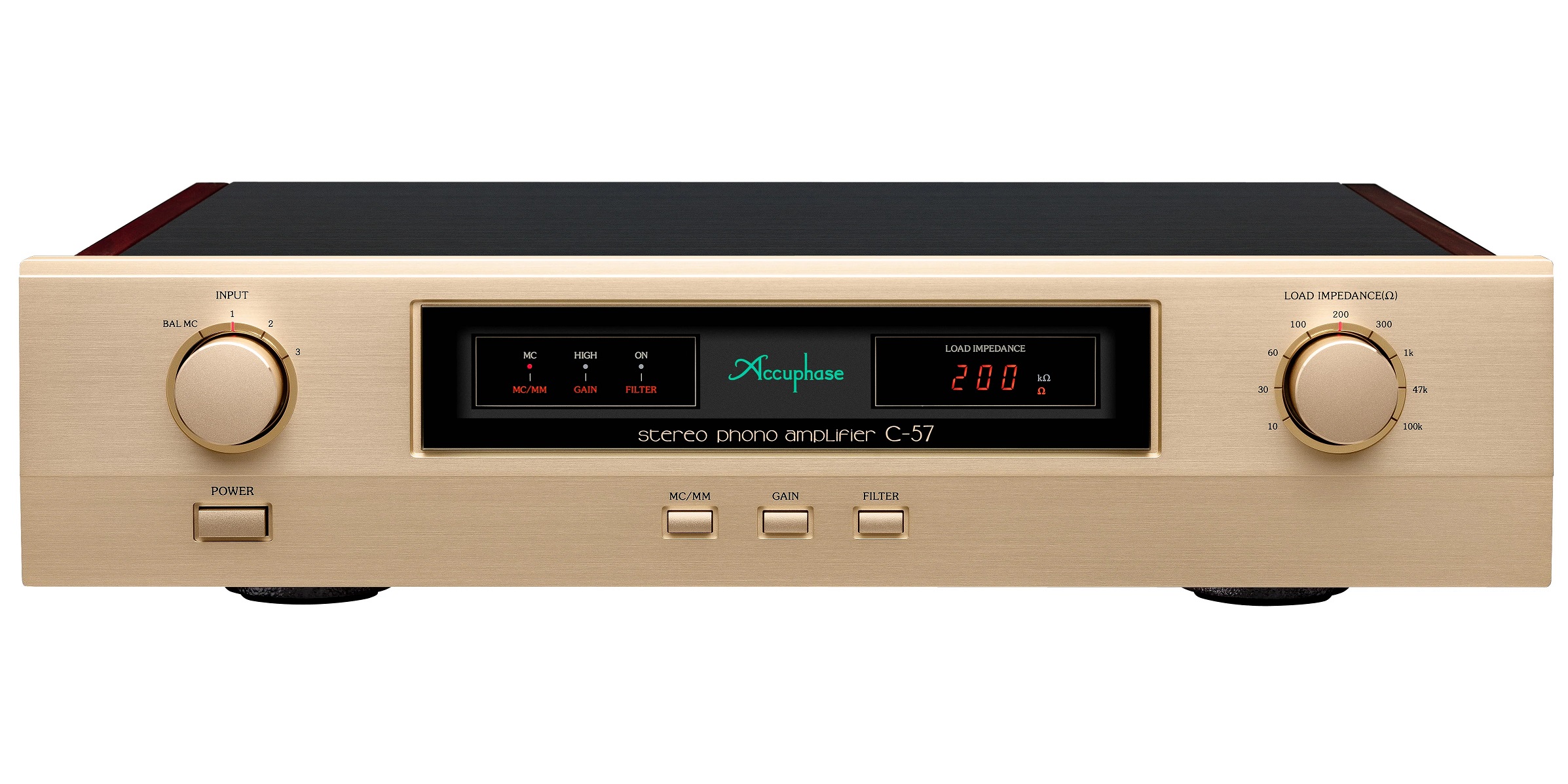

Το Accuphase C-57 ειναι balanced phono stage MM/MC, 3 εισοδων.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

The C-57’s configuration provides a fully balanced phono equalizer from input to output. The combination of a high precision equalizer amplifier and a dedicated MC/MM head amplifier fully optimized for the cartridge characteristics creates a highly accurate phono equalizer. As a first, the MC head amplifier uses ANCC to further improve noise performance. Dedicated MC phono balanced inputs allow for balanced connections with record players. The C-57 combines only the best technological advances to extract the full potential of analog discs.

Features

• MC head amplifier with ANCC
• Low-noise fully balanced configuration
• One dedicated balanced MC phono input and three sets of regular phono inputs
• Separate settings memory for each input position

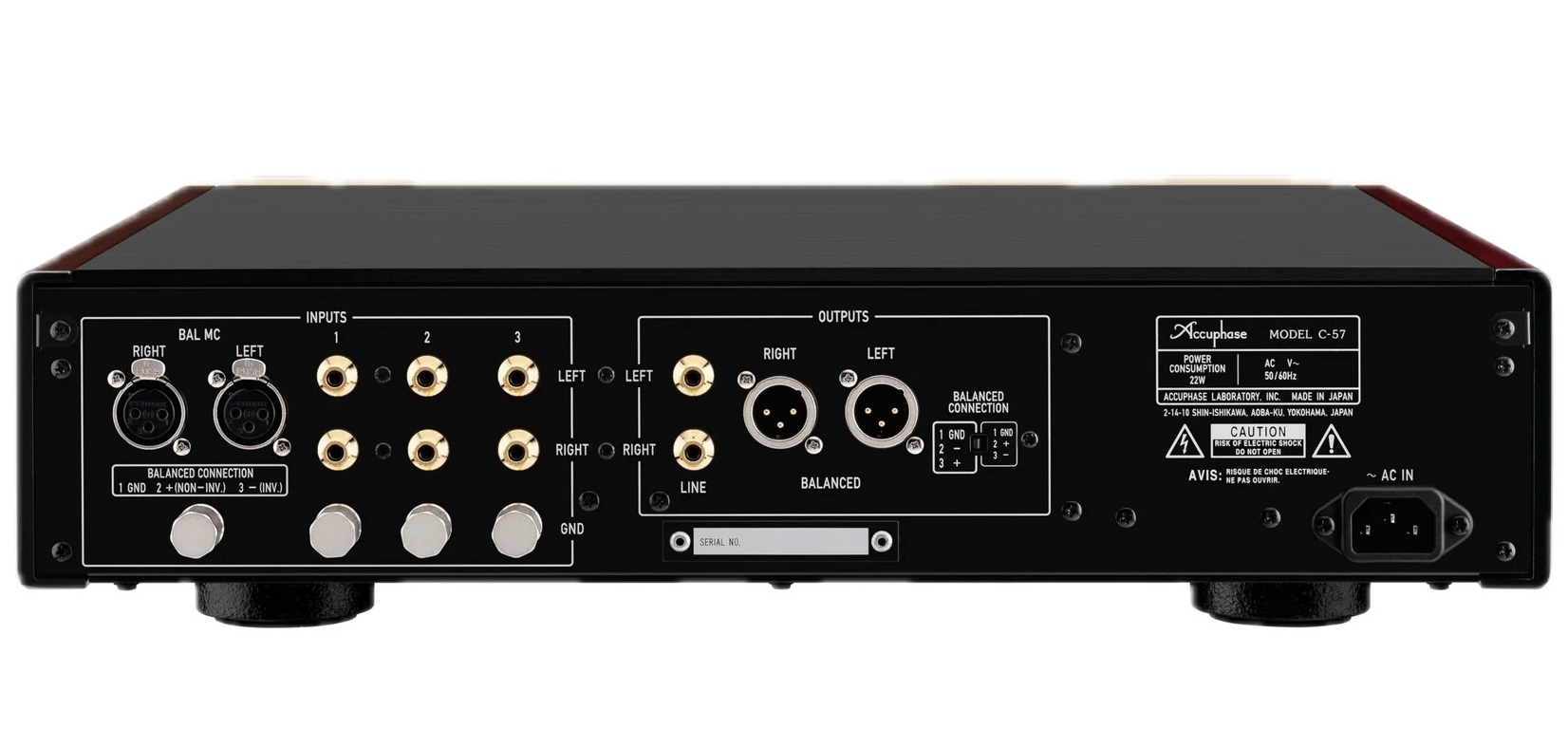

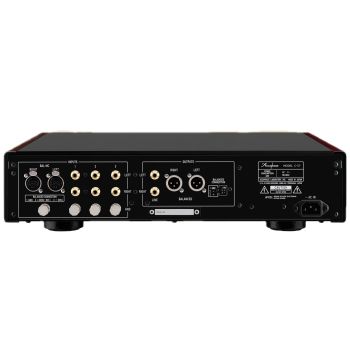

• Balanced and line level output connectors
• Polarity selector for balanced output
• Monaural construction layout
• Low-noise regulated power supply circuitry unaffected by load fluctuations
• High-accuracy phono equalizer with RIAA deviation of only ±0.3 dB
• Load impedance settings for seven MC and three MM phono cartridge types
• MC: 10/30/60/100/200/300/1k ohms
• MM: 1/47/100 kilohms
• 7-segment load impedance LED display
• Gain selector for low-output phono cartridges
• Subsonic filter ON/OFF selector
• Disc equalizer assembly using glass fiber cloth fluorocarbon resin PCB with low dielectric constant and low losses
• High-capacitance 25 V/15,000 μF filter capacitors
• Toroidal power transformer
• Aluminum top plate with hairline finish
• Elegant side panels with natural wood grain finish
• High-carbon cast iron insulators for superior vibration damping

Specifications

• RIAA Deviation (10 Hz – 20 kHz): ±0.3 dB
• Total Harmonic Distortion: 0.005 % or less (1 kHz, at rated output)
• Input Sensitivity: MC 1.26 mV, MM 40 mV (1 kHz, at rated output)
• Maximum Input Voltage: MC 5.7 mV, MM 180 mV (1 kHz, THD 0.005 %)
• Input Impedance (MC): 10 Ω / 30 Ω / 60 Ω / 100 Ω / 200 Ω / 300 Ω / 1 kΩ
• Input Impedance (MM): 1 kΩ / 47 kΩ / 100 kΩ
• Gain (Normal): MC 64 dB, MM 34 dB
• Gain (High): MC 70 dB, MM 40 dB
• Subsonic Filter: –12 dB/octave at 10 Hz (ON/OFF)
• Rated Output Voltage / Output Impedance: 2 V / 50 Ω
• Signal-to-Noise Ratio: MC 98 dB, MM 108 dB (at rated output)
• Rated Output: 2 V
• Dimensions (W × H × D): 465 × 114 × 407 mm
• Mass: 14.8 kg
