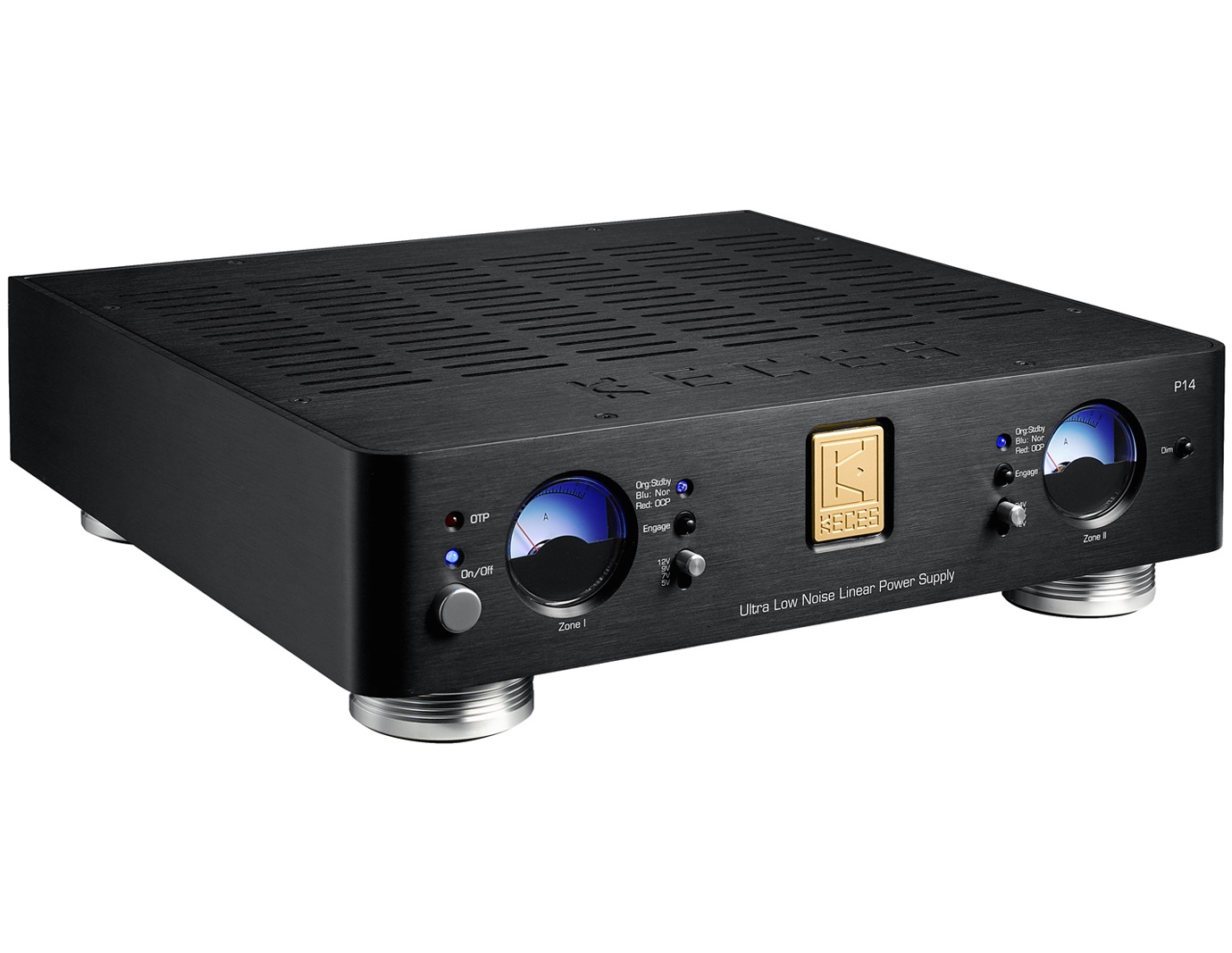

Το Keces P14 ειναι γραμμικο τροφοδοτικο DC (και φιλτρο) που παρεχει σε 4 ζωνες συνεχους ρευματος (DC), Α ζωνη: 5V, 7V, 9V και 12V, στα 4Α, Β ζωνη: 12V, 15V, 19V, 24V, στα 5Α, Γ ζωνη: 5V, 9V στα 2A και Δ ζωνη: USB 5V στα 2A, για switchers, routers, optical isolators κλπ.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

• Transformer: High-quality toroidal transformer for clean and stable power delivery
• Grounding: Separate ground per output rail
• Noise Performance: Ultra-low ripple noise
• Acoustic Noise: No hum or buzz at 50 Hz and under peak load
• Circuit Design: Fully discrete analog design (no ICs)
• Quantum Resonance Technology: Field-based synchronization of electromechanical components for improved coherence and timing

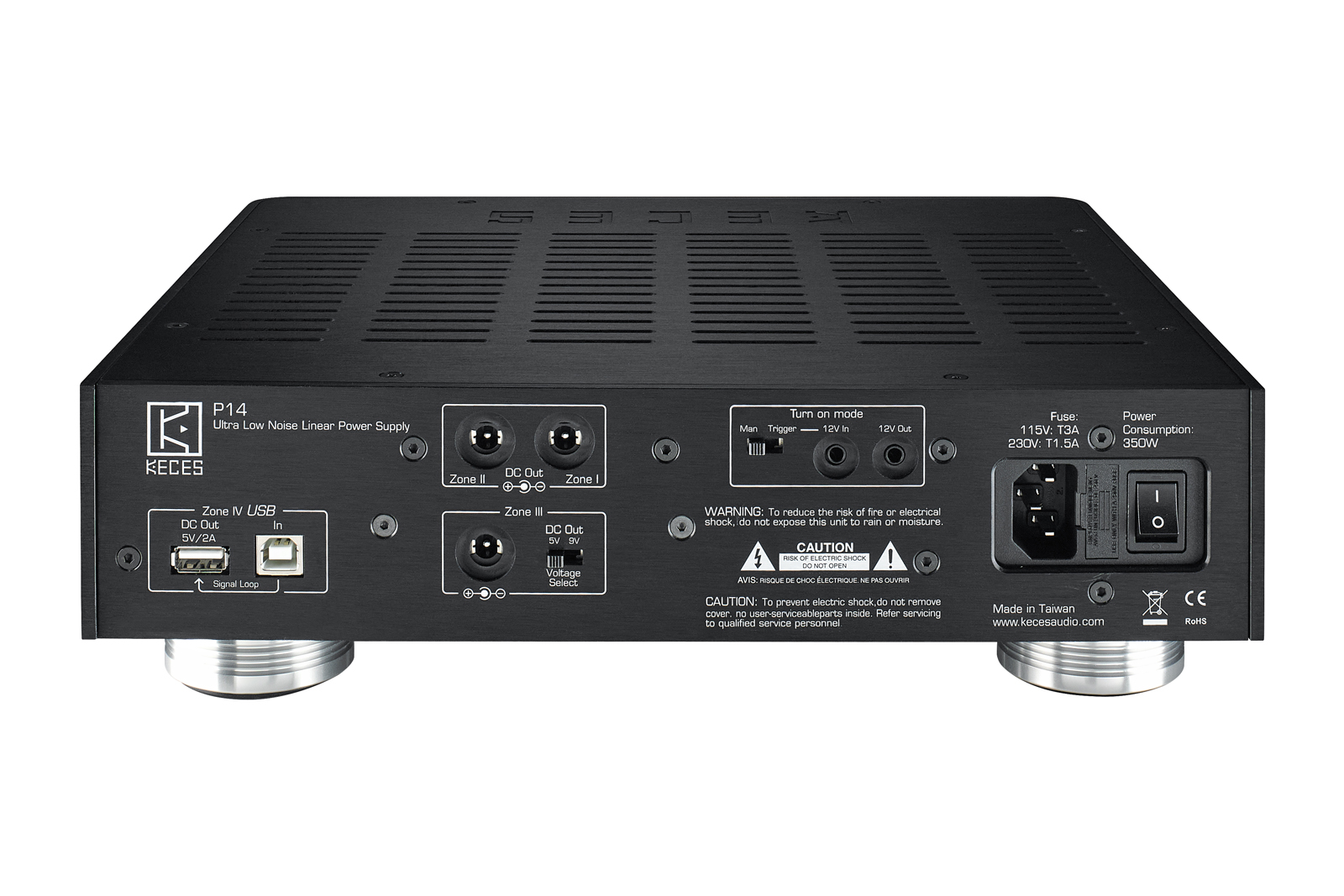

• Outputs
  • 4 independent zones
  • Fully isolated between zones
• USB Isolation
  • Integrated USB isolator
  • PCM support up to 24bit / 96kHz
  • DSD support up to DSD64
• Mechanical Design: In-house audio-grade foot cones for vibration control

Specifications

• Output Voltage & Current
  • Zone I: 5V / 7V / 9V / 12V, 4A
  • Zone II: 12V / 15V / 19V / 24V, 6A
  • Zone III: 5V / 9V, 2A
  • Zone IV: USB 5V, 2A
• USB Isolator
  • Low-speed: 1.5 Mbps
  • Full-speed: 12 Mbps
• Applications
  • Audiophile-grade systems
  • Machine protection
  • Measurement and test equipment
  • Medical environments
• Ripple Noise
  • < 100 µV (full power)
  • < 10 µV (at 60% load)
• Power Requirement
  • Standby: 0.5 W
  • Maximum: 500 W
• Casing: Full aluminum chassis
• Dimensions (W × D × H): 300 × 279 × 66 mm
• Weight
  • Net: 7 kg
  • Shipping: 9 kg
