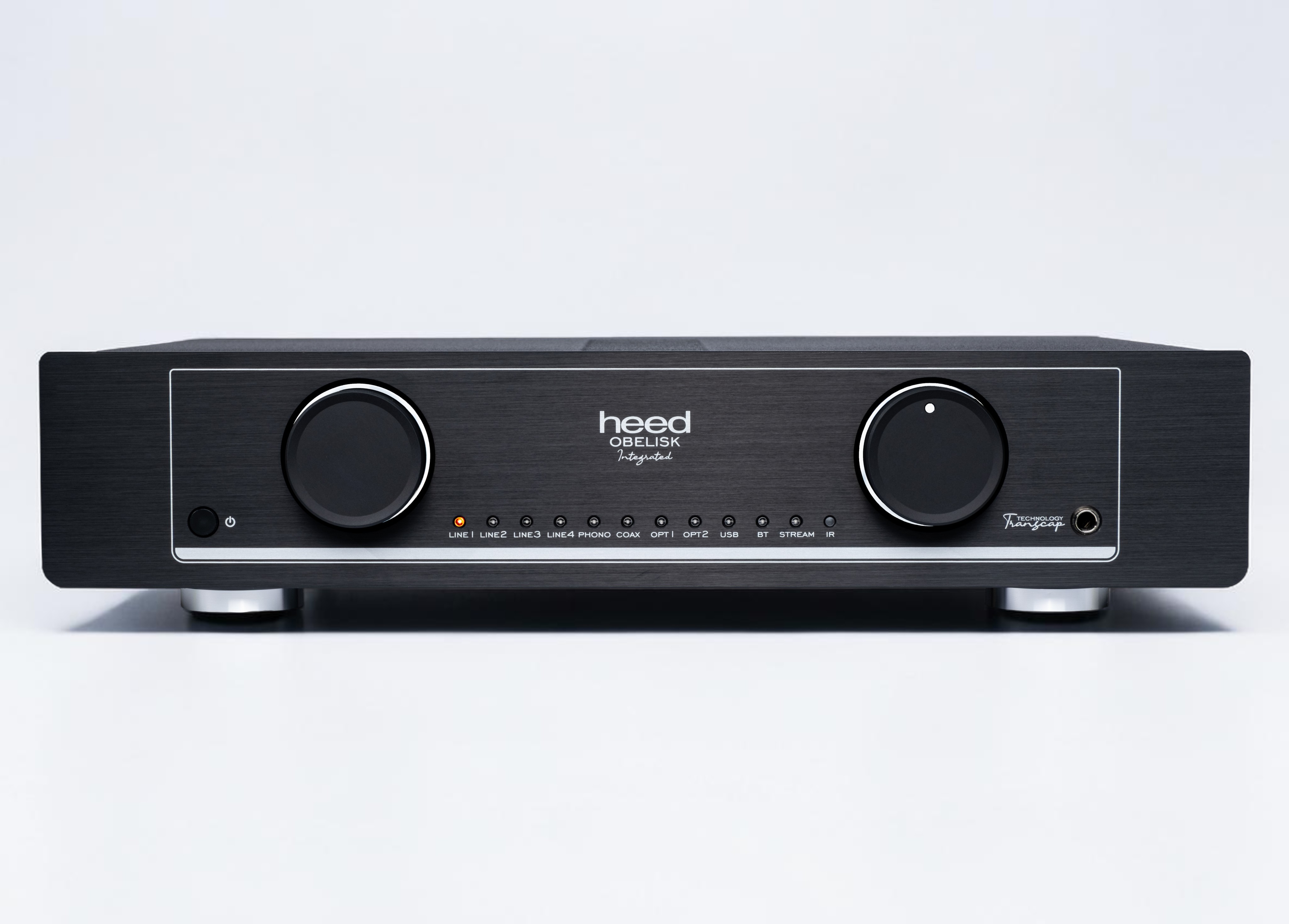

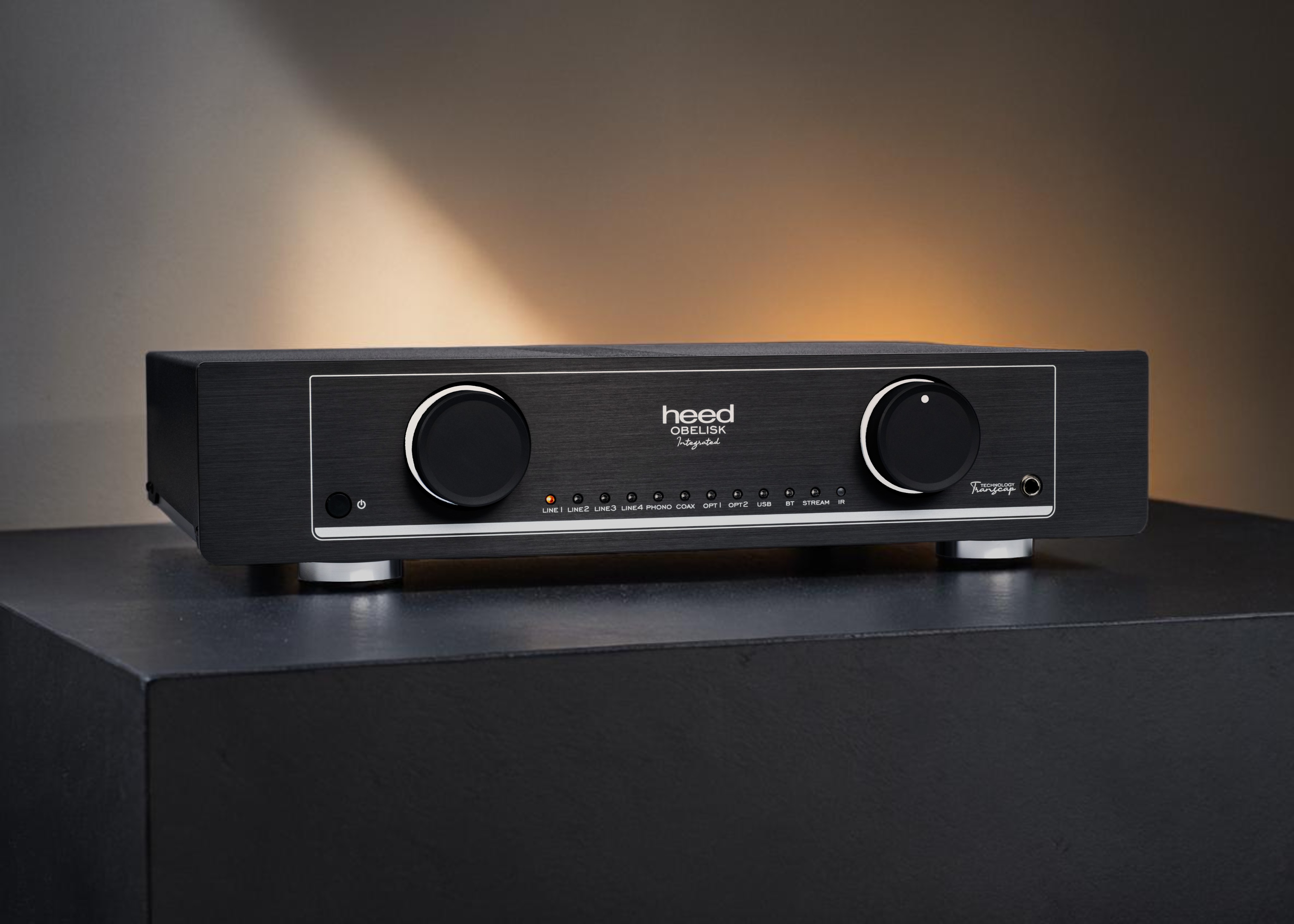

Ο Heed Obelisk Integrated ειναι ενας δικαναλος ενισχυτης 2x50 wrms στα 8Ω. Διαθετει Phono Stage MM και ενισχυτη ακουστικων. Αναβαθμιζεται με: DAC, Streamer DAC και εξωτερικο τροφοδοτικο. Κατασκευασμενος με εξαιρετικα υλικα, σχεδιαστηκε να ειναι διαφανος και μουσικος με ζεστες χροιες.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Heed Obelisk Integrated is built around the evolved Transcap architecture, a rare output-capacitor topology refined over decades. Unlike conventional amplifier designs, it delivers superior linearity, controlled low-frequency performance, and fast transient response. The combination of 4×4.700μF filtering and 2×4.700μF output capacitors, paired with a custom 200VA transformer, ensures stable current delivery, high headroom, and a dynamic, authoritative presentation.

The fully discrete design extends to the MM phono stage, implemented as a precise 2-stage active/passive RIAA circuit with excellent headroom and wide cartridge compatibility. Carefully selected components — Alps Blue Velvet potentiometer, gold-contact relays, and isolated analog/digital power supplies — maintain low noise, stability, and signal integrity throughout the amplification path.

Hand-assembled with hand-soldered PCBs, the Obelisk Integrated follows a strict quality-first approach. Its modular design allows it to be upgraded with an optional DAC and network streaming module, while the external Obelisk Power Supply further enhances power quality and amplifier performance. This is a system designed to evolve, combining engineering depth with long-term upgrade flexibility.

Upgrade options:

• DAC: 1x coax, 2x optical, 1x USB, Bluetooth, inputs
• DAC & Streamer: additional Ethernet and Wifi connectivity: Spotify Connect, Tidal Connect, Qobuz through dedicated app, UPnP/DLNA

Power supply upgrade options:

• OBELISK POWER SUPPLY: The external Obelisk Power Supply can be connected to this amplifier. This way all the analog sections are supplied with an even higher quality clean power, as well as the power amplifiers are improved by the mains noise and DC filter.

Extra Features

• Isolated analog and digital power supplies
• Standby function
• Dedicated headphone amplifier
• Volume controlled and fixed line level outputs
• Alps Blue Velvet potentiometer
• Pure gold contact relay input selector
• Aluminium remote control

Specifications

• Inputs:
  • 4 × RCA line level
  • 1 × RCA MM phono
• Outputs:
  • 2 × 4 mm speaker terminals
  • 1 × RCA fixed line output
  • 1 × RCA preamplifier output
  • 1 × 6.3 mm headphone output
• Power Output:
  • 50 W / channel @ 8 Ω
  • 65 W / channel @ 4 Ω
• Minimum Speaker Impedance: 4 Ω
• Headphone Amplifier Power: 80 mW / channel @ 16 Ω
• Minimum Headphone Impedance: 16 Ω
• Input Sensitivity:
  • Line: 135 mV
  • MM Phono: 2.5 mV
• Frequency Response: 11 Hz – 35 kHz
• RIAA Accuracy: ±1.5 dB
• MM Phono Input Impedance: 47 kΩ + 100 pF
• Power Consumption: 300 W (max)
• Dimensions (W × D × H): 43.0 × 34.0 × 9.6 cm
• Weight: 10.1 kg
