Το Accuphase DP-570 S ειναι CD, SACD player. Λειτουργει και ως DAC με θυρες: 1x Coaxial, 1x Optical και 1x USB.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

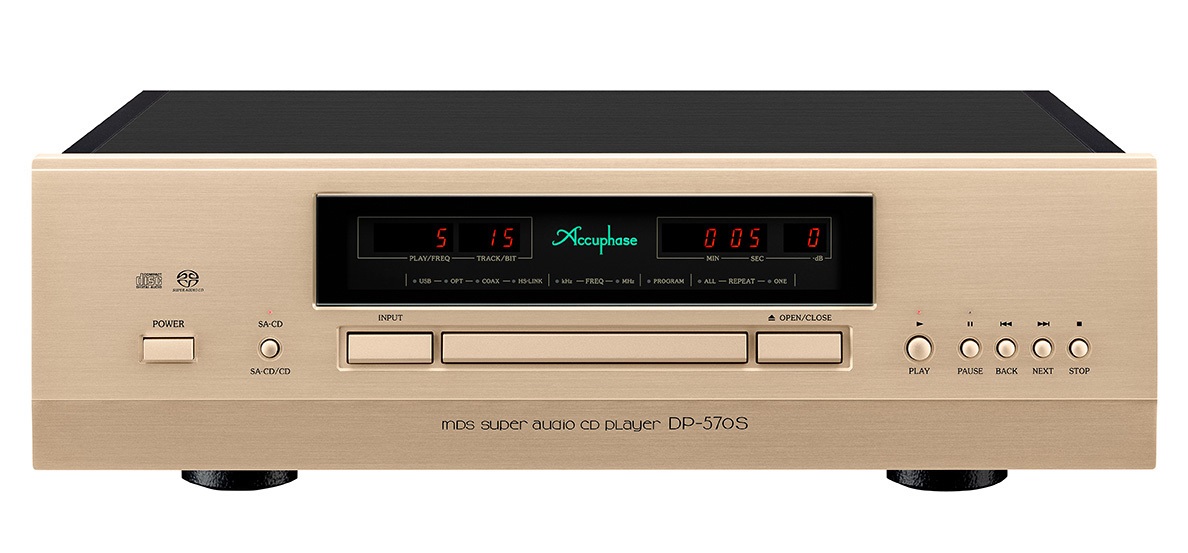

With a sophisticated design surrounding graceful disc loading, a solid disc drive, and a D/A converter employing unique low-noise, low-distortion ANCC technology, many years of accumulated expertise have created a highly evolved SA-CD/CD player. Ample input and output terminals, programmable playlists that allow you to enjoy music in your preferred order, and digital connections to a voicing equalizer add additional appeal. You will undeniably relish how the DP-570S recreates all your favorite songs.

Features

• High-quality SA-CD/CD drive
• MDS+ D/A converter with four parallel circuits using ANCC
• Programmable playlists for playing tracks in a desired order
• Data disc playback
• Direct Balanced Filter with completely separate line and balanced signals
• Display with sampling frequency and number of quantization bits
• Abundant transport outputs and digital inputs
• Digital connections to a voicing equalizer
• Balanced output phase selector

Specifications

• Disc Formats: Super Audio CD, CD
• D/A Converter: MDS+ type with four circuits in parallel per channel

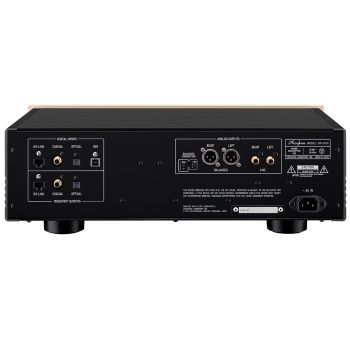

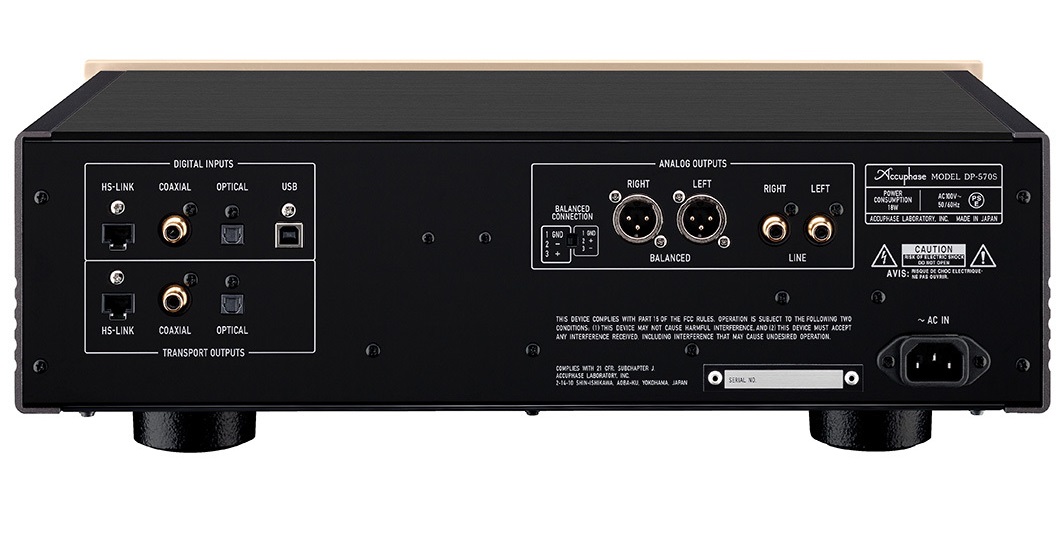

• Digital Inputs: HS-LINK, USB, Coaxial, Optical
• Digital Outputs: HS-LINK, Coaxial, Optical
• Analog Outputs: Balanced (XLR), Line (RCA)
• Frequency Response:
  • SACD: 0.5 Hz – 50 kHz (–3 dB)
  • CD: 2 Hz – 20 kHz (–0.3 dB)
• Total Harmonic Distortion:
  • SACD: 0.0006 %
  • CD: 0.001 %
• Signal-to-Noise Ratio:
  • SACD: 120 dB
  • CD: 117 dB
• Dynamic Range:
  • SACD: 117 dB
  • CD: 113 dB
• Channel Separation:
  • SACD: 120 dB
  • CD: 115 dB
• Digital Filter: Selectable (4 types for PCM signals)
• Output Level: 2.5 V (Line), 2.5 V (Balanced)
• Output Impedance: 50 Ω
• Output Level Control: 0 dB to –80 dB (1 dB steps)
• USB Input: PCM up to 384 kHz / 32-bit, DSD up to 11.2896 MHz (ASIO or DoP)
• Coaxial / Optical Input: PCM up to 192 kHz / 24-bit
• HS-LINK Input: PCM up to 384 kHz / 32-bit, DSD up to 11.2896 MHz
• HS-LINK Output: PCM 44.1 kHz – 384 kHz, DSD 2.8224 MHz – 11.2896 MHz
• Power Requirements: AC 120 V / 230 V / 240 V, 50 / 60 Hz
• Power Consumption: 19 W
• Dimensions (W × H × D): 465 × 151 × 393 mm
• Weight: 19 kg
